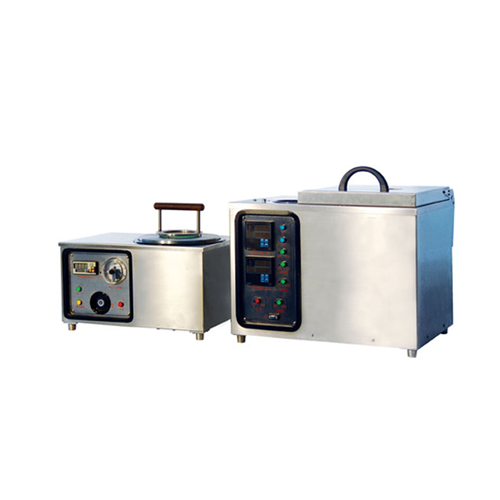

Samyon PAV-1 Bitumen PAV System (1100W, 900W)

(1) PAV-1-1 pressuring aging vessel

1.Electricity

Power supply： AC（220±10%）V、50Hz

Rated power： 1100W

Rated current： 10A

2.Vessel

Volume： 13L

Medium： Air

Rated working temp.： 110℃±5℃

Rated working pressure： 2.1MPa

Designed pressure： 2.2 MPa

Water pressure： 2.75 MPa

Safety valve opening pressure： 2.15 MPa

Explosive pressure for rupture disk： 2.6 MPa

3. Pressure controller

Model： WP962-2(WP-D90)

Precision： ±0.01MPa

4. Temperature and time controller Model WP962-1(WP-D90)

Temperature control precision： ±0.1℃

Grading： 64×1080min

Outage maintaining function： Yes

Dimension : 630mm×450mm×500mm

（2）PAV-1-2 aging vacuum vessel

1. Electricity

Power supply： AC（220±10%）V、50Hz

Rated power： 900W

Rated current： 10A

2. Vessel

Volume： 13L

Medium： Air

Rated working temp.： 180℃±5℃

Rated working pressure： Absolute pressure 15kPa

Pressure control mode： Electric contact pressure gauge

3. Temperature and time controller Model XMT-E55T2

Temperature control precision： ±0.1℃

Time control mode： Button

4. Dimension 560mm×390mm×350mm
