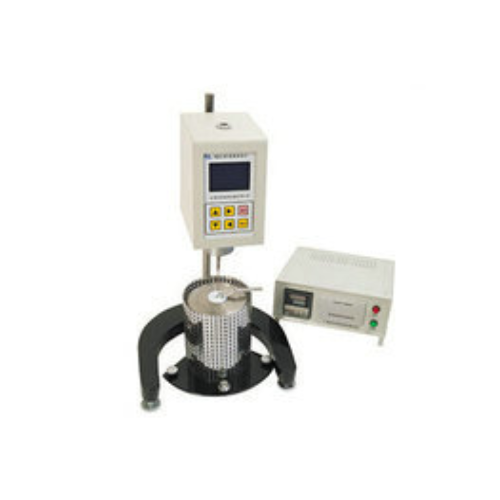

Samyon NDJ-1F Rotational Viscometer (25 mPa•s～1×107 mPa•s)

I. Main technical specifications and parameters

1. Measurement range: 25 mPa•s～1×107 mPa•s ( If choosing the No.30 spindle, the measurement range can extend to 2×107 mPa•s)

2. Spindle: No. 21, 27, 28, 29 total four types of spindles (the No.30 is optional)

3. Spindle speed: 0.1～200 RPM, continuously speed regulation (With 12 grades of speed)

4. Measurement error: ±1% (F•S), choosing the No.30 spindle, it will be ±3% (F•S)

5. Temperature control range: 45 ℃～200 ℃

6. Temperature control accuracy: ±0.1 ℃

7. Sample cylinder cubage: 20 ml

8. Power supply: AC 220 V±10%, 50 Hz

9. Ambient temperature: 5 ℃～35 ℃ (when the control temperature of the heater is close to the ambient temperature, turn on the air conditioner to allow the ambient temperature is approximately 5 ℃ lower than the control temperature of the heater);

10. Relative humidity: ≤80%

11.Printing output:needle printer

12.Comunication port:RS232 port

II, Optional accessories

1.NDJ-1F Brookfield Viscometer and Computer communication software(CD)

2. 300℃ high temperature heating furnace

3. 30# rotator
