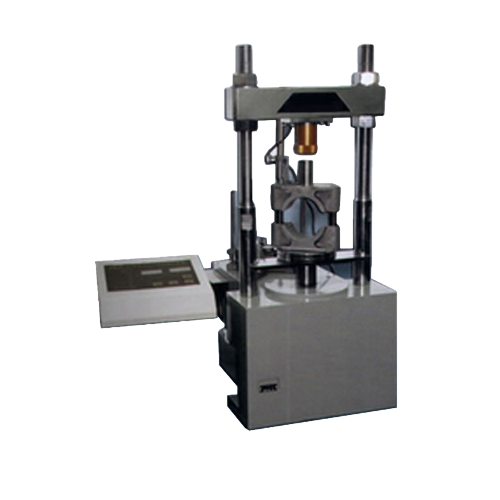

Samyon MQS-2 Pavement Strength Test Apparatus (150kN)

Application:

The Apparatus is used together with accessories to test indirect strength of extension of every soil specimen(cleavage crack test), CBR test(including test swell increment after soaking in water), resilience modulus test, unconfined compression strength test, Marshall stability test and bitumen mixture cleavage crack test.

Specifications:

1. Capacity: max. 150kN

2. Displacement: max. 100mm

3. Speed: 1mm/min. and 50mm/min. (two kinds of speed for selection)

4. Load transducer: 0 – 150kN, 0 – 50kN

Displacement transducer: 0 – 30mm

5. Accuracy: ±1%

6. Automatic tracking, data acquisition, peak distinguished and real-time signal output for X – Y recorder

7. Loading methods: Manual and electric

8. Power supply: 220V±10V 50Hz 15A

9. Power: 750W
