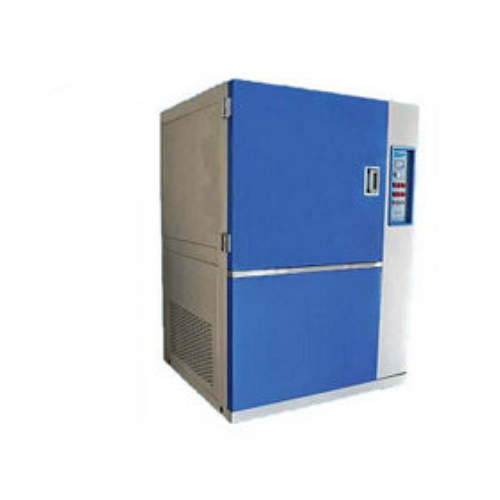

Samyon LSY-18B Automatic Concrete Sulfate Dry Wet Cycling Test Equipment (6 kw)

Purpose:

The equipment is testing the sulfate erosion resistance of the high strength grade of ordinary concrete in the dry-wet circulation environment .

Technical parameters：

Effective volume： 860mm×660mm×800mm (LxWxH)

Tank size： 860mm×500mm×760mm(LxWxH)

Number of the mould: 100×100×400 Can be put: 18 pieces (6 groups), 100×100×100 Can be put:54 Pieces (18 groups)

Specimen the control range of temperature in the cabinet: 80℃±2℃

The solution temperature control: 20-25℃

Heating Power: 6KW

Cooling Power: 3.7KW

Pump: 1KW

Power: 380V、5KW
