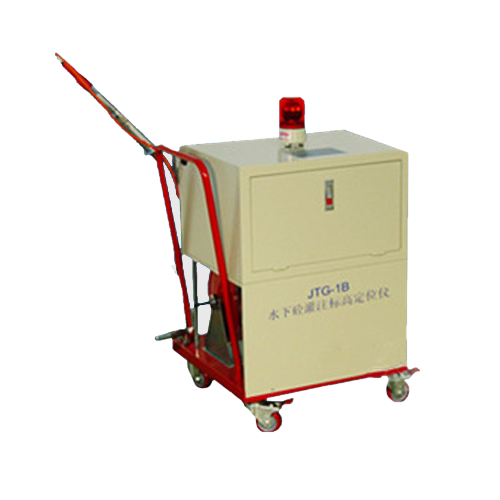

Samyon JTG-1B Underwater Concrete Perfusion Elevation Locator (0m～30m)

I. Main technical features

1. This instrument is composed of a ground instrument and a measuring probe. The ground instrument is placed on a small wheeler Easy to move.

2. It adopts advanced PC technology. It can collect, analyze, calculate and process the data automatically. The test results are reliable.

3. It adopts acousto-optic alert to make the operator judge and control the location.

4. Notebook PC and software are optional. The measuring value can be displayed in real time and saved for analyzing.

II. Main technical specifications

1. Locating range： 0m～30m

2. Locating precision：±0.3m

3. Dimension of probe： Φ50mm×980mm

4. Net weight of probe： 7.5kg

5. Working condition：

⑴ Ambient temperature：Controller on the ground: -10℃～50℃,Probe under the ground: 0℃～40℃

⑵ Relative humidity：Controller on the ground: ≤90%

6. Power supply：AC220V±10%, 50Hz; 20W Or UPS (AC220V sine wave)

7. Measuring mode：Fix-point and timing measurement.
