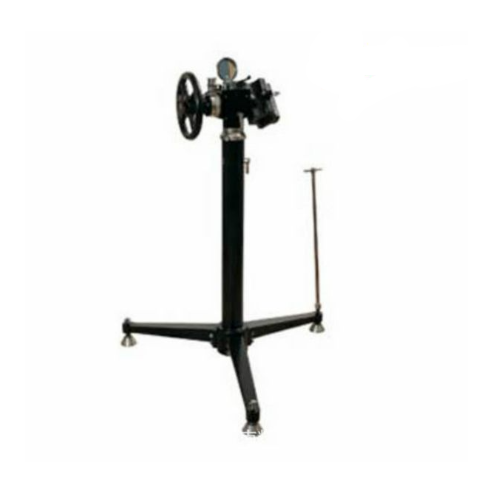

Samyon JJG-2 Inclinometer Calibrator (0°~360°)

I. Main technical features

1. The measuring range for the dip angle is 0°~90°. The measuring precision is 1.8′. It is the most precise inclinometer calibrator in China.

2. Fine adjusting unit is equipped. Easy to adjust the position of dip angle precisely.

3. All components of the instrument adopts non-magnetic material.

4. Advanced technology and high precision. Fully meet the requirements of the specifications.

5. Clamp diameter is Φ62mm～Φ76mm. Special clamp is equipped. It is suitable to calibrate different kinds of inclinometers.

II. Main technical specifications

1. Dip angle

(1) Measuring range： 0°~90°

(2) Measuring precision： 1.8′

(3) Scale division： 1°

(4) Scale bias： ≤1.8′

(5) Vernier reading： 1.2′

2. Azimuth angle

(1) Measuring range： 0°~360°

(2) Measuring precision： 12′

(3) Scale division： 1°

(4) Scale bias： ≤3′

(5) Vernier reading： 12′

3. Sensitivity of level bulb： 30″/2mm

4. Clamp diameter： Φ62mm ～ Φ76mm

5. Non-perpendicularity bias： ≤12＇

6. Dimension： Diameter 1m， height 1.18m.
