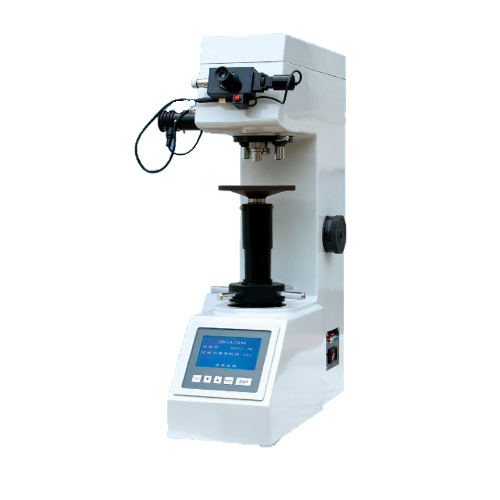

Samyon HVS-50 Digital Display Vickers Hardness Tester (5-2900HV)

Feature & Use:

Frictionless loading shaft, high precision testing force

LCD display, menu operating, complete function with data processing, hardness value conversion and so on

Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E92

It's suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, etc.

Specifications：

Measuring range: 5-2900HV

Test force: 9.807, 49.03, 98.07, 196.1, 294.2, 490.3N

(1, 5, 10, 20, 30, 50kgf)

Max. height of test piece: 180mm

Depth of throat: 125mm

Magnifications of the measuring system: 125X, 250X

Min. scale value of the optical micrometer: 0.5μm

Power supply: 220V AC or 110V AC, 50 or 60Hz

Dimensions: 580 x 260 x 730mm

Weight: approx. 90kg

Standard accessories：

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Diamond pyramid penetrator: 1 pc.

Vickers standardized block: 3 pcs.

Printer: 1 pc.
