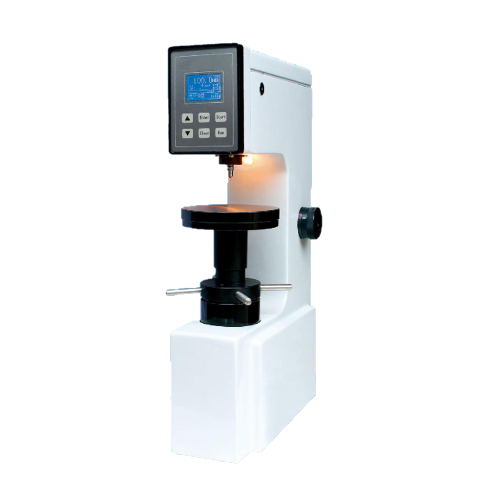

Samyon HRS-150 Digital Display Rockwell Hardness Tester (20-70HRC)

Feature & Use

* Frictionless loading shaft, high precision testing force

* After preliminary test force is applied, the handwheel will lock automatically. Automatic testing process, no human operating error

* Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18

It is suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.

Specifications

Measuring range: 20-88HRA, 20-100HRB, 20-70HRC

Test force: 588.4, 980.7, 1471N (60,100,150kgf)

Max. height of test piece: 170mm

Depth of throat: 130mm

Unit for display: 0.1HR

Power supply: 220V AC or 110V AC, 50 or 60Hz

Dimensions: 500 x 250 x 700mm

Weight: approx. 75kg

Standard accessories

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

Large V-notch anvil: 1 pc.

Diamond cone penetrator: 1 pc.

1/16”steel ball penetrator: 1 pc.

Rockwell standardized block: 5 pcs.

Printer: 1 pc.
