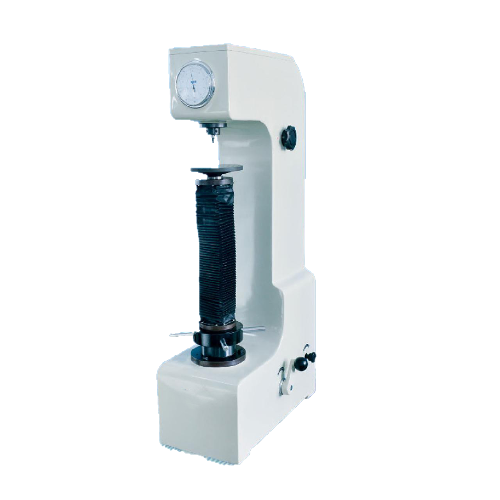

Samyon HR-150B Rockwell Hardness Tester (20-70HRC)

Feature & Use

* High travel of test anvil in vertical direction and it is suitable for testing of large test piece

* Manual testing process, no need for electric controlling

* It's steady and reliable for testing of curved surface

* Precision conforms to GB/T 230.2, ISO 6508-2 and ASTM E18

It's suitable to determine the Rockwell & Superficial Rockwell hardness of ferrous metals, alloy steel and hard alloy, as well as treated layers of metal surface, such as carburized layer, nitrided layer and electroplated coating, etc. It's especially suitable to determine heterotypic workpiece.

Specifications

Measuring range:20-88HRA, 20-100HRB, 20-70HRC

Test force: Rockwell 588.4, 980.7, 1471N (60, 100, 150kgf)

Max. height of test piece: 400mm

Depth of throat: 160mm

Min. scale value: 0.5HR

Dimensions: 548 x 326 x 1025mm

Weight: approx. 140kg

Standard accessories

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Diamond cone penetrator: 1 pc.

1/16" steel ball penetrator: 1 pc.

Rockwell standardized block: 5 pcs.
