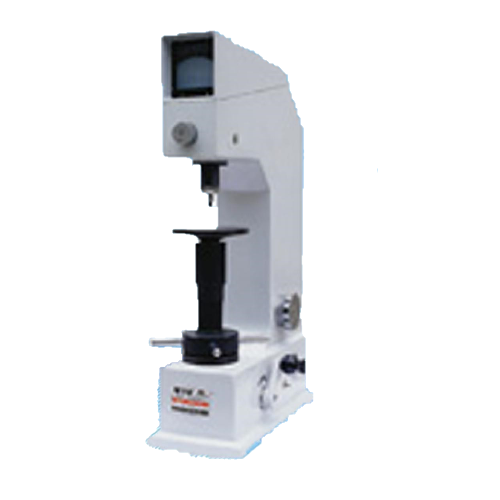

Samyon HBRV-187.5 Brinell Rockwell Vickers Hardness Tester (200-1000HV)

Specifications:

Measuring range: 4-650HBW, 20-88HRA, 20-100HRB, 20-70HRC, 200-1000HV

Test force: 294.2, 306.5, 588.4, 612.9, 980.7, 1471, 1839N

(30, 31.25, 60, 62.5, 100, 150, 187.5kgf)

Max. height of test piece: 200mm

Depth of throat: 160mm

Power supply: 220 AC or 110V AC, 50 or 60Hz

Dimensions: 480 x 250 x 760mm

Weight: approx. 95 kg

Standard accessories:

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Steel ball penetrator: Φ1.588mm 1 pc.

Tungsten carbide ball penetrator: Φ2.5, Φ5mm, 1 pc. each

Diamond cone penetrator: 1 pc.

Diamond pyramid penetrator: 1 pc.

Brinell standardized block: 1 pcs.

Rockwell standardized block: 5 pcs.

Vickers standardized block: 1 pcs.

40X Readout microscope: 1 pc.
