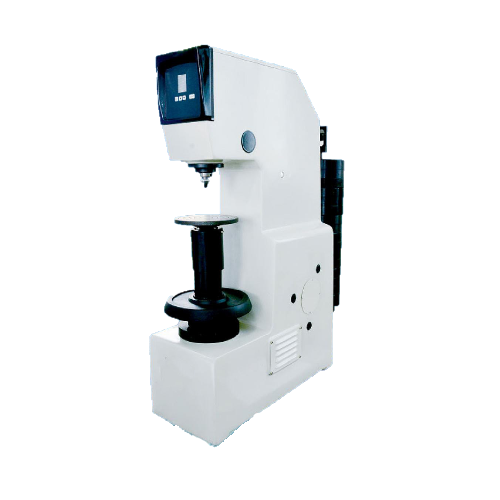

Samyon HB-3000 Brinell Hardness Tester (8-650HBW)

Feature & Use:

* Mechanical reversing switch

* It's steady and reliable for testing of curved surface

* Precision conforms to the Standards of GB/T 231.2, ISO 6506-2 and ASTM E10

It's suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.

Specifications:

Measuring range: 8-650HBW

Test force: 1838.8, 2451.8, 7355.3, 9807, 29421N

(187.5, 250, 750, 1000, 3000kgf)

Max. height of test piece: 230mm

Depth of throat: 120mm

Power supply: 380V AC or 220V AC, 50 or 60Hz.

Dimensions: 700 x 268 x 842mm

Weight: Approx. 210kg

Standard accessories:

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Tungsten carbide ball penetrator: Φ2.5, Φ5, Φ10mm, 1 pc. each

Brinell standardized block: 2 pcs.

20X Readout microscope: 1 pc.
