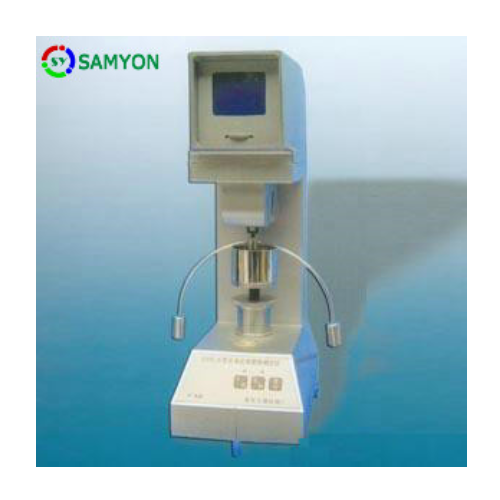

Samyon GYS-2 Photoelectric Liquid and Plastic Limit Tester (30°)

Application:

The Photoelectric Liquid and Plastic Limit Tester is used to determine moisture content of upper limit of fine grain soil (liquid limit) and lower limit (plastic limit). The united test of liquid limit and plastic limit solved measuring technology problem of the cone penetrating depth under the different soil plasticity state. The tester has some features such as no frictional resistance and the cone automatically falls etc. friction resistance, can measure the cone arbitrary soil depth etc. Characteristics

Specifications:

1. Cone : 30°

2. Cone mass: 76g, 100g available for selection

2. Penetrating depth: penetrating depth display

3. Readings: auto audio readings report

4. Power supply: 220V±10% 50Hz

5. Dimension : 220 x 130 x 400mm (L x W x H)

6. Weight: 5.8kg
