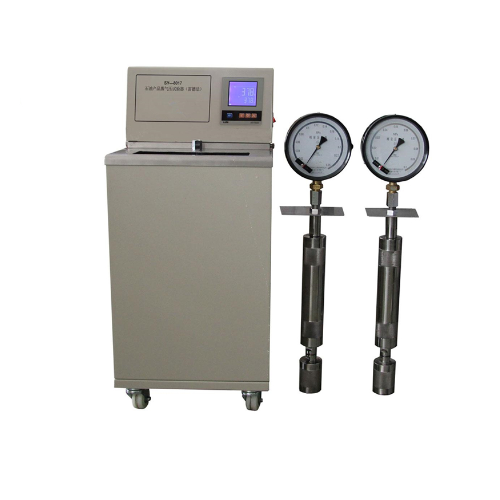

Samyon 8017 Vapor Pressure Tester (1600W)

I. Main technical features

1. Floor type structure. Stainless steel working table. It is good looking and easy to operate. Accessories are complete.

2. Digital temperature controller. The temperature in water bath is uniform. Temperature control accuracy is high. It can meet the requirements of test.

3. Two precise pressure meters to detect the gas pressure inside the bomb.

4. Two sets of vapor pressure bombs. It can do synchronous tests.

II. Main technical specifications

1. Power supply：AC(220±10%)V, 50Hz

2. Heating power of bath：1600W

3. Temperature control range of bath：(Room temp.~90)℃

4. Temperature control accuracy of bath：±0.1℃

5. Accuracy of pressure meter：±0.4％

6. Ambient temperature： (-10~35)℃

7. Relative humidity： ≤85%

8. Maximum power consumption：1700W

9. Dimension：350mm×340mm×750mm
