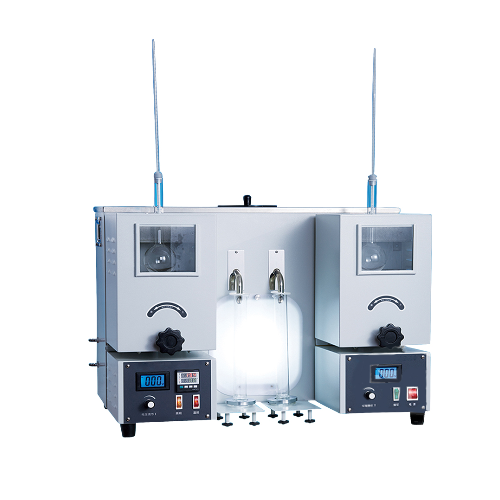

Samyon 6536A Distillation Apparatus (4000W)

1.Power supply: AC(220±10%)V, 50Hz

2. Heating power: 1300W×2, continuously adjustable.

3.Receiving cylinder: 100ml, division value 1ml.

4. Distillation flask: 125ml,meet the requirements of GB/T 6536 and ASTM D86

5.Thermometer: (-2~300)℃ and (-2~400)℃, division value 1℃

6.Flask support board: SiC, bore diameter φ32mm, φ38mm, φ50mm.

7. Temperature controller: 1) Range: (Ambient +10)℃～60℃

　　　 2) Accuracy: ±0.5℃

　　　 3) Display: LED

Note: The temperature control is to control the temperature of condensate in the condenser pipe.

8. Ambient temperature: ≤35℃

9. Relative humidity: ≤85%

10. Maximum power consumption: 4000W

11.Dimension:760mm×520mm×500mm
