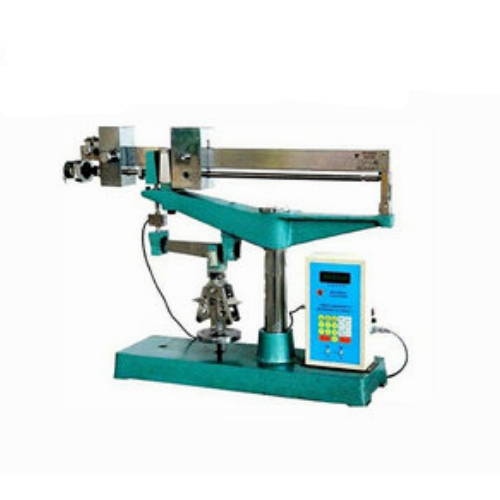

Samyon 6000N Electric Flexure Testing Device (6000N)

Purpose: For flexural strength test of cement specimen and other nonmetallic material.

Standard: GB/T17671, GB3350, BS4550, ISO679

Accuracy: ±1%

Output ratio of single lever: 10: 1

Output ratio of double lever: 50: 1

Capacity: single lever: 1000N, Dual lever: 6000N

Loading rate: Single lever:(10±1)N/s, Dual lever: (50±5)N/s

Motor Model: D-63

Power: 220V 50Hz 15W

Flexure jig:

Diameter of the loading and supporting bars: Φ10mm

Central distance between two supporting bars: 100mm

Effective distance between the loading and supporting bars: 46mm

Relative indication error: 1%
