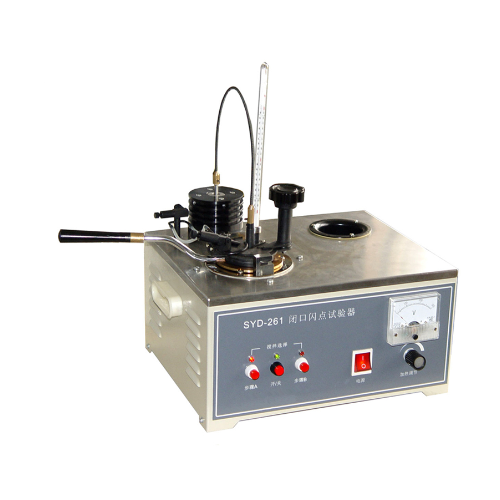

Samyon 261 Pensky-Martens Closed-Cup Flash Point Tester (650W)

1. Power supply： AC (220±10%)V, 50Hz.

2. Heating device:：The heating power is continuously adjustable from 0 W to 600W.

3. Heating rate:：(1～12)℃/min；Controllable and adjustable.

4. Stirring rate： Procedure A: (90～120)RPM, Procedure B: (250±10)RPM

5. Oil cup：(1) Inner diameter: 50.7mm～50.8mm.

(2) Depth: 55.7mm～56.0mm

(3) The scribed line depth of capacity of testing oil: 33.9mm～34.3mm.

(4) Capacity of testing oil: about 70ml

6. Igniting device：(1) Igniting source: gas（or other civilian fuels，the same below）

(2) Electric ignition. Gas flame diameter:3.2mm～4.8mm

7. Thermometers：Mercury-in-glass thermometer.Specifications are as below:

(1)Scale -5℃～110℃, division 0.5℃。

(2)Scale 20℃～150℃, division 1℃。

(3)Scale 90℃～370℃, division 2℃。

8. Ambient temperature：≤ 35℃

9. Relative humidity：≤ 85％

10. Maximum power consumption：650W
