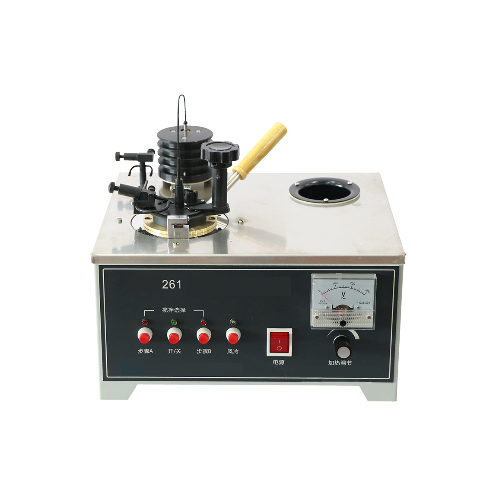

Samyon 261(2008) Pensky-Martens Closed-Cup Flash Point Tester (≤650W)

1. Power supply：AC (220±10%)V, 50Hz;

2. Total power consumption：≤650W;

3. Heating device: (1)The furnace body is made of silicon carbide

(2)Heating power is adjustable from (0-600) w.

4.Heating mode: Adjust by manual.

5.Stir mode: Mechanical drive stirring.

6. Stirring rate： Procedure A: (90～120)RPM, Procedure B: (250±10)RPM

7. Oil cup：

(1) Inner diameter: 50.7mm～50.8mm.

(2) Depth: 55.7mm～56.0mm

(3) The scribed line depth of capacity of testing oil: 33.9mm～34.3mm.

(4) Capacity of testing oil:about 70ml

8. Igniting source: gas（or other civilian fuels，the same below）

9. Thermometers：Mercury-in-glass thermometer.Specifications are as below:

(1)Scale -5℃～110℃, division 0.5℃。

(2)Scale 20℃～150℃, division 1℃。

(3)Scale 90℃～370℃,division 2℃。

10. Ambient temperature：（15～35）℃

Relative humidity：≤ 85％

11. Dimension: 370mm×320mm×300mm

12. Net weight: 7kg.
