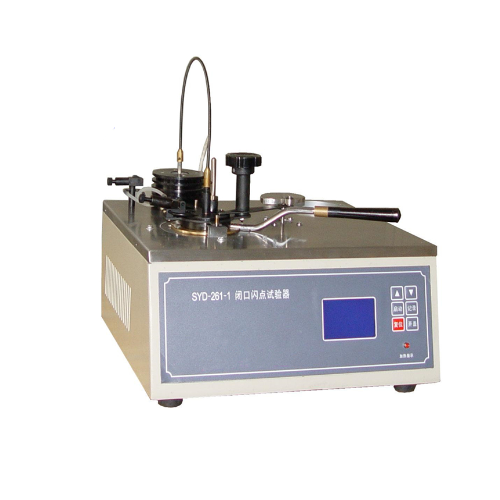

Samyon 261-1 Pensky-Martens Closed-Cup Flash Point Tester (600W)

1. Power supply：AC( 220±10% )V, 50Hz.

2. Heating device：

(1) The furnace is silicon carbide material. Power is 600W. 　　

(2) The heating power is adjustable from 0 W to 600W.

3. Heating rate：Procedure A: (5～6)℃/min, Procedure B:(1～1.5)℃/min.

Automatically controlled

4. Stirring device：(1)Stirring motor: BYGH101 stepping motor

(2) Driving mode: flexible shaft

(3) Shaft size: 8mm×40mm

5. Stirring rate：Procedure A: (90～120)RPM, Procedure B: (250±10)RPM

6. Igniting device： (1) Igniting source: gas（or other civilian fuels，the same below）

(2) Electric ignition. Gas flame diameter:3.2mm～4.8mm

7. Temperature testing probe：RTD, PT100

8. Ambient temperature：≤ 35℃

9. Relative humidity：≤ 85％

10. Maximum power consumption：650W
