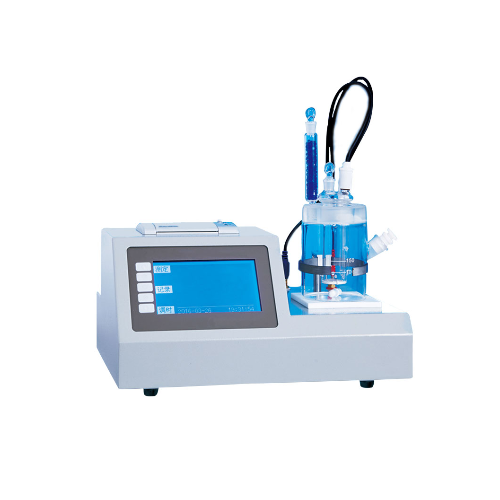

Samyon 2122C Coulometric Karl Fischer Titrator (0～100 mg)

I. Main technical features

1. 240×128 graphics dot-matrix LCD screen.

2. High precision measuring electrode make it rapidly and accurately to find the end point. It also has a good antijamming capability.

3. It adopts electrolyte blank current compensation and equilibrium point drift compensation, two methods to correct measurement result.

4. It has automatic detecting function for open-circuit fault and short-circuit fault of measuring electrode.

5. It can save at most 255 data with time mark.

6. It has a calendar clock inside. It keeps time precisely.

7. It has screen protection function. The LCD screen will shut off if there is no operation for a long period.

II. Main technical specifications

1. Amount and precision of electrolyzed water： 1) 10ug～1000ug，±2ug 2) >1000ug，0.2%

2. Measurement range: 0～100 mg

3. Resolution: 0.1ug

4. Maximum electrolysis speed: 40ug/s

5. Power supply: AC 220V±20%, 50 Hz

6. Maximum power consumption: 30 W

7. Ambient temperature: 10℃~35 ℃

8. Relative humidity: ≤85%

9. Dimension: 320mm×240mm×150mm

10. Net weight: 5 kg
