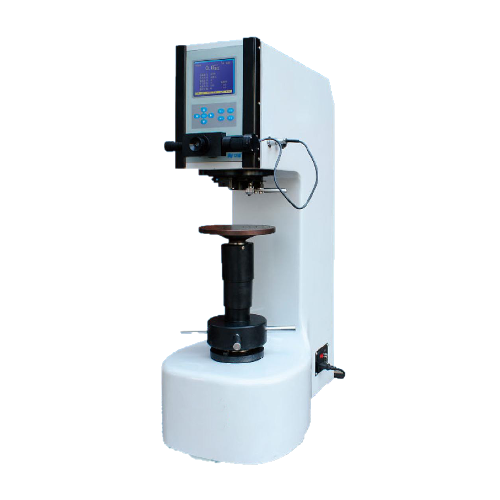

Samyon 210HBS-3000 Digital Display Brinell Hardness Tester (8-650HBW)

Feature:

* Digital display of Hardness value

* Hardness conversion between different hardness scales

* Manual turret, weight loading system

* Automatic testing process, no human operating error

* High travel, large size work table

* Large LCD screen displaying for parameters setup, easy operation

* Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10

It's suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.

Specifications

Measuring range: 8-650HBW

Test force: 612.9, 980.7, 1225.9, 1838.8, 2451.8, 7355.3, 9807, 14710.5, 29421N

（62.5, 100, 125, 187.5, 250, 750, 1000, 1500, 3000kgf）

Max. height of test piece: 280mm

Depth of throat: 150mm

Optical magnification: 20X, 40X

Min. Measuring unit: 1μm

Power supply: 220V AC or 110V AC, 50 or 60Hz

Dimensions: 570 x 330 x 910mm

Weight: Approx. 220kg　

Standard accessories

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Tungsten carbide ball penetrator: Φ2.5, Φ5, Φ10mm, 1 pc. each

Brinell standardized block: 2 pcs.

Optional accessories

　Rectangle work table: 400 x 150 x 30 mm

Brinell video measuring system

Brinell CCD image processing system
