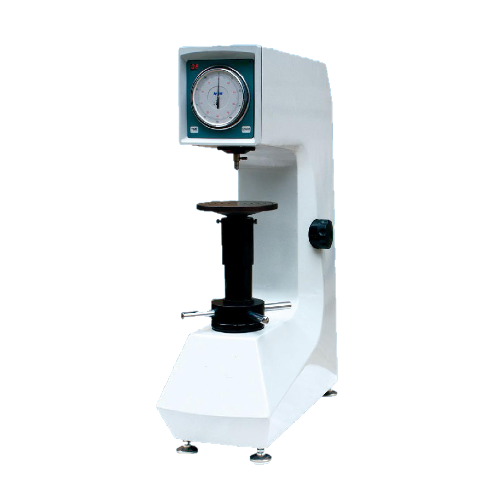

Samyon 200HRD-150 Motor-Driven Rockwell Hardness Tester (20-70HRC)

Feature & Use

* Optimized mechanical frame for small test pieces.

* It is steady and reliable for testing of curved surface

* Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18

It is suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.

Specifications

Measuring range: 20-88HRA, 20-100HRB, 20-70HRC

Test force: 588.4, 980.7, 1471N (60,100,150kgf)

Max. height of test piece: 210mm

Depth of throat: 165mm

Min. scale value: 0.5HR

Power supply: 220V AC or 110V AC, 50 or 60Hz

Dimensions: 522 x 220 x 729mm

Weight: approx. 68 kg

Standard accessories

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Diamond cone penetrator: 1 pc.

1/16”steel ball penetrator: 1 pc.

Rockwell standardized block: 5 pcs.
