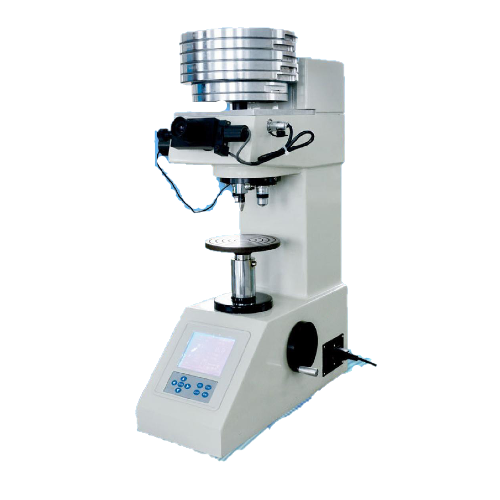

Samyon 200HBVS-30 Digital Display Brinell & Vickers Hardness Tester (5-3000HV)

Specifications:

Measuring range: 3.18-653HBW, 5-3000HV

Test force: 9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196.1, 294.2N (1, 2, 2.5, 3, 5, 10, 20, 30kgf)

Max. height of test piece: 130mm

Depth of throat: 110mm

Magnifications of the measuring system: 500X, 125X (Eyepiece: 12.5X, Objective: 10X, 40X)

Min. scale value of the optical micrometer: 0.01um

Coordinate anvil: Dimension: 100x100mm

Travel: 25x25mm

Grade division of micrometer head: 0.01mm

Power supply: 220 AC or 110V AC, 50Hz

Dimensions: 490 x 330 x 760mm

Weight: approx. 88kg

Standard accessories:

Coordinate anvil: 1 pc.

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Tungsten carbide ball penetrator: Φ1, Φ2mm, 1 pc. each

Diamond pyramid penetrator: 1 pc.

Brinell standardized block: 2 pcs.

Vickers standardized block: 2 pcs.

Electronic calculator: 1 pc.
