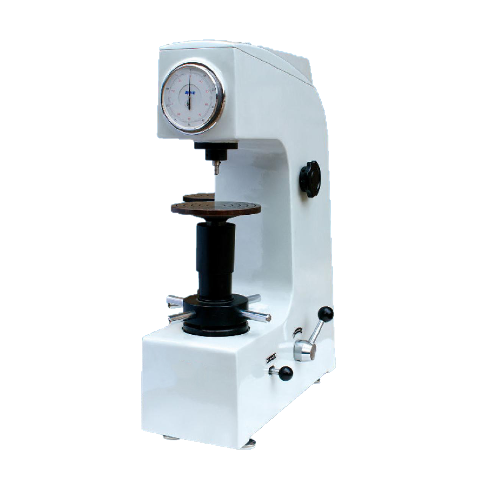

Samyon 150A Rockwell Hardness Tester (20-70HRC)

Feature & Use

* Manual testing process, no need for electric controlling

* It's steady and reliable for testing of curved surface

* Precision conforms to GB/T 230.2, ISO 6508-2 and ASTM E18

It's suitable to determine the Rockwell & Superficial Rockwell hardness of ferrous metals, alloy steel and hard alloy, as well as treated layers of metal surface, such as carburized layer, nitrided layer and electroplated coating, etc. It's especially suitable to determine heterotypic workpiece.

Specifications

Measuring range: Rockwell: 20-88HRA, 20-100HRB, 20-70HRC

Superficial Rockwell: 70-94HR15N, 42-86HR30N, 20-77HR45N 67-93HR15T, 29-82HR30T, 10-72HR45T

Test force: Rockwell 588.4, 980.7, 1471N (60, 100, 150kgf)

Superficial Rockwell 147.1, 294.2, 441.3N (15, 30, 45kgf)

Measuring scale: HRA, HRB, HRC, HRN, HRT (Scales of F, G are optional)

Unit of display: 0.1HR

Moving range of measuring head: 50mm

Output: built-in RS232 interface

Max. height of test piece: 170mm

Depth of throat: 150mm

Dimensions: 910 x 535 x 220mm

Power supply: 220V AC or 110V AC, 50 or 60Hz

Weight: approx. 85kg

Standard accessories

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Diamond cone penetrator: 1 pc.

1/16" steel ball penetrator: 1 pc.

Rockwell standardized block: 5 pcs.

Superficial Rockwell standardized block: 4 pcs.

Printer: 1 pc.
