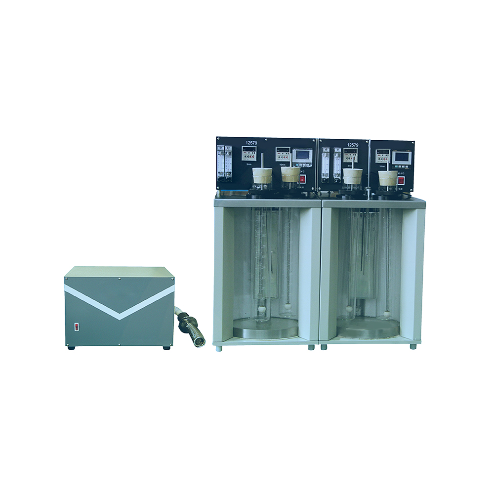

Samyon 12579 Foaming Characteristic Tester (94±5 ml/min)

I. Main technical features

1. The instrument adopts all-in-one structure. It includes three parts: low temperature test part and it’s control, high temperature test part and it’s control, a portable cooler for low temperature test part.

2. The temperature controller has parameters modifying function. If there is bias between showing temperature and testing temperature,it ca be corrected by this function.

3. The instrument equips an automatic timing alarm.

II. Main technical specifications

1. Power supply： AC(220±10%)V, 50Hz

2. Constant temperature heating power： 650W

3. Auxiliary heating power： 1000W

4. Cooling power： 500W

5. Air flow rate： (94±5)ml/min,adjustable

6. Temperature control range for high temperature bath： (Room temp.~99.9)℃

7. Temperature control range for low temperature bath： (5~99.9)℃

8. Temperature control accuracy： ±0.5℃

9. Timer： 5min and 10min，accurate to second

10. Timing accuracy： 0.01%＋0.05s（20℃）

11. Ambient temperature： (-10~+40)℃

12. Relative humidity： ≤85%

13. Maximum power consumption： 2700W

14. Dimension： Main unit：800mm×500mm×765mm

Cooler：400mm×450mm×300mm
