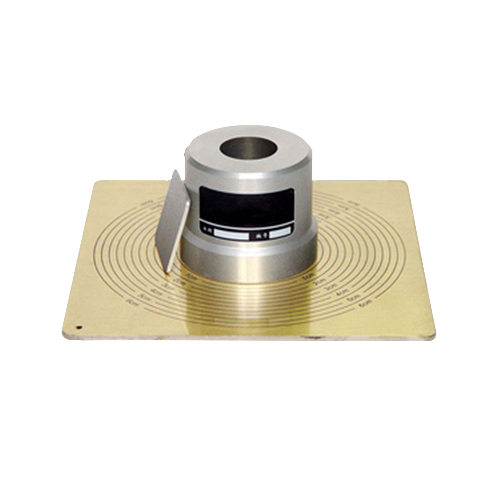

Samyon 0751 Emulsified Asphalt Consistency Tester (4 mm, 0.5 cm)

I. Main technical features

1. Consist of truncated cone, plate and base plate, the structure is simple;

2. Truncated cone made by aluminum alloy, beautiful and generous;

3. The bottom plate is made of stainless steel, durable and with scale for easy reading.

II. Main technical specifications

1. The metal truncated cone: Upper caliber: 38 mm; lower caliber: 89 mm; high 76 mm;

2. The metal plate: 4 mm thick, with a concentric calibration line, spacing: 0.5 cm.

3. Dimensions: 235 mm × 235 mm × 80 mm (length × width × height).

III. Optional accessories

1. Balance: Weighing 1000g, the sense of it not more than 0.1g;
