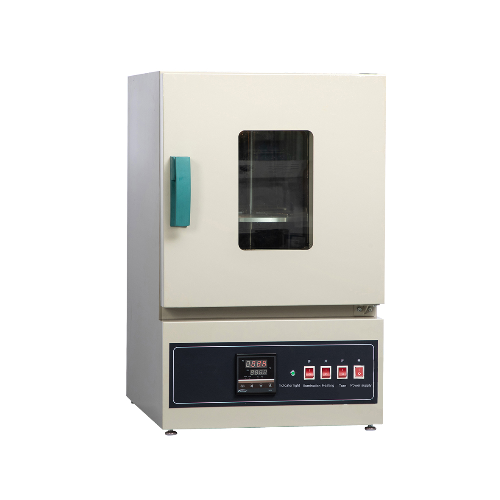

Samyon 0609 Asphalt Thin Film Oven (2.5KW)

I. Main technical features

1. The outer shell is made of sheet steel. It equips a stainless steel working chamber on the top half. There is a observation window in the center. An illuminating lamp is equipped inside the chamber. Easy to observe the reading of thermometer inside the chamber during the test.

2. Heating device is equipped on the bottom of chamber. It adopts natural convection method to heat the air. The chamber can be heated uniformly by air channel on the top, bottom and back.

3. There are four turn plates for placing the specimen container on in the center of chamber. It can be rotated by a motor having a rate at 5.5RPM.

4. Intelligent temperature controller ensures the temperature being at 163℃±0.5℃ as per standard test method.

II. Main technical specifications

1. Power supply: AC220V±10%，50Hz

2. Power: 2.5KW

3.Temperature of workroom: 163℃±0.5℃

4. Temperature control accuracy: ±0.5℃

5. Rotate speed of turn plate: (5.5r±1r)/min

6. Test sample quantity: 4 pieces

7.Size of workroom: 450mm×450mm×510mm

8. Ambient temperature: 5℃～50℃

9. Relative humidity: ≤85％
