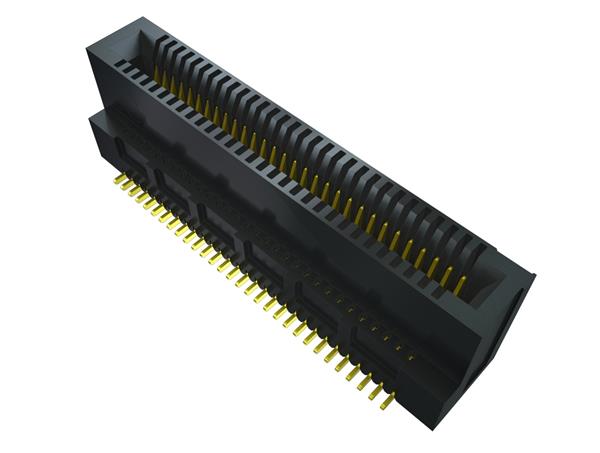

Samtec MEC8-150-02-L-DV-A-FR Sockets 0.80 mm Mini Edge Card Connector, Vertical
ManufacturerSamtec(View more products from this manufacturer)
ModelMEC8-150-02-L-DV-A-FR
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 0.8 mm
Current Rating: 2.3 A
Mounting Angle: Vertical
Mounting Style: SMD/SMT
Number of Rows: 2 Row
Voltage Rating: 180 VAC
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder
Number of Positions: 100 Position
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
