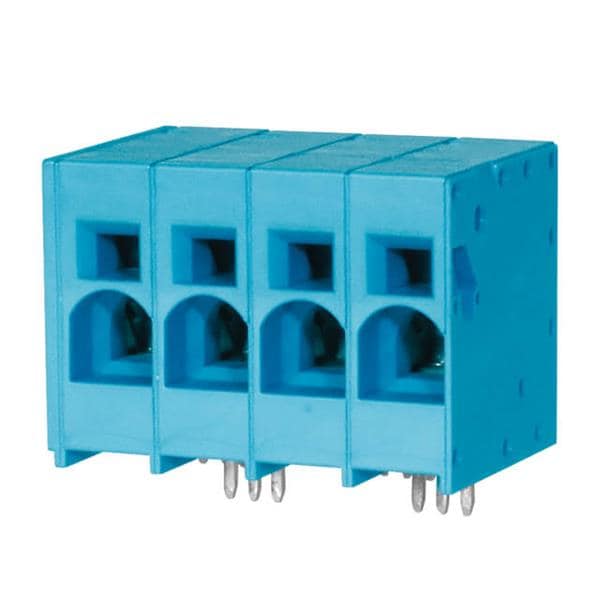

Same Sky (formerly CUI Devices) TBL008-1000-04BE Fixed Terminal Blocks Terminal block, screwless, 10.0, Horizontal, 4, Blue
ModelTBL008-1000-04BE
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Blue
Pitch: 10 mm
Current Rating: 66 A
Mounting Angle: Horizontal
Mounting Style: Panel Mount
Voltage Rating: 600 V
Wire Gauge Max: 4 AWG
Wire Gauge Min: 18 AWG
Contact Plating: Tin
Contact Material: Copper Alloy
Housing Material: Polyamide (PA)
Connection Method: Spring Cage
Termination Style: Through Hole
Flammability Rating: UL 94 V-0
Number of Positions: 4 Position
