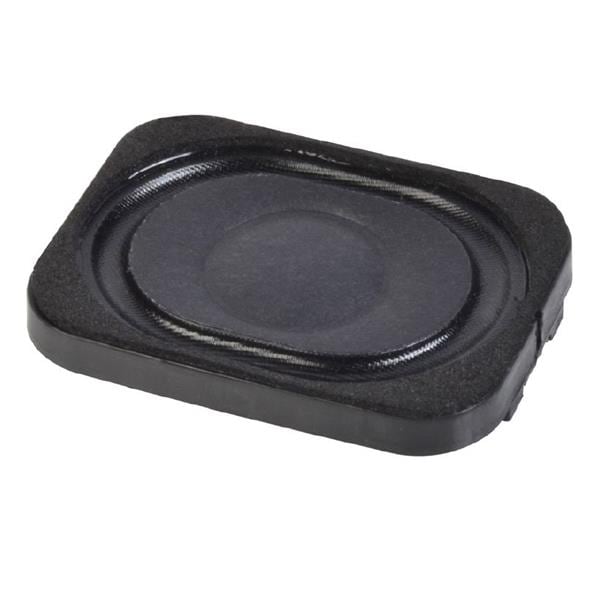

Same Sky (formerly CUI Devices) CDS-40304-L1003 Electromagnetic 2W 4Ohm 400Hz PHR-2 40x30mm Papr Nd-Fe-B

Depth: 7.1 mm

Shape: Oval

Width: 30 mm

Height: 7.1 mm

Length: 40 mm

Frequency: 400 Hz

Impedance: 4 Ohms

Dimensions: 40 mm L x 30 mm W x 7.1 mm H

Unit Weight: 7.700 g

Power Rating: 2 W

Cone Material: Paper

Mounting Style: Frame Mount

Voltage Rating: 1 V

Magnet Material: Neodymium Iron Boron (NdFeB)

Termination Style: Wire Leads

Frequency Response: 100 Hz to 20 kHz

Sound Pressure Level: 102 dBA

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
