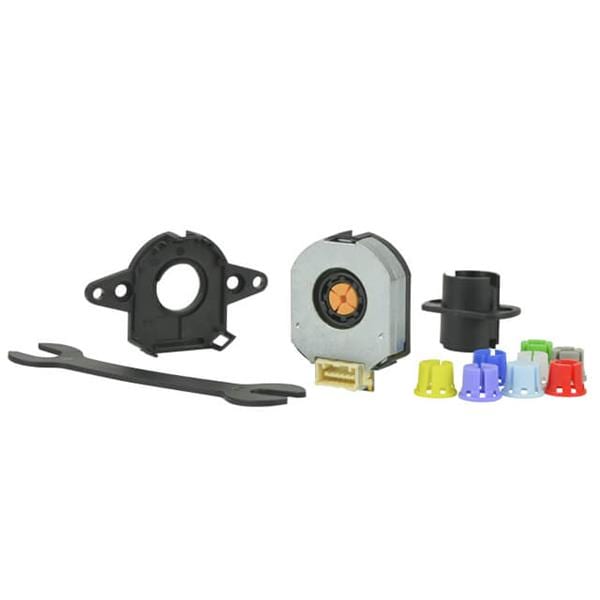

Same Sky (formerly CUI Devices) AMT232A-V Absolute KIT 12-BIT Radial SSI Absolute Encoder
ModelAMT232A-V
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Resolution: 12 PPR
Technology: Rotary
Output Type: 12 bit Single-Turn
Unit Weight: 15.700 g
With Switch: Without Switch
Shaft Length: No Shaft
Mounting Style: Snap In
Shaft Diameter: Assorted Sleeves
Size / Dimension: 28.58 mm x 10.3 mm x 39.94 mm
Number of Detents: No Detent
Termination Style: Radial
Operating Supply Voltage: 5 VDC
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
