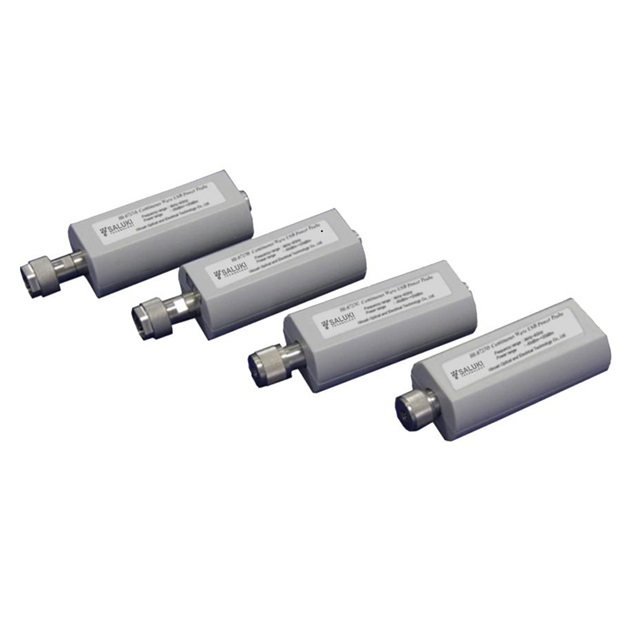

SALUKI S87231 USB CW Power Sensor (10 MHz ~ 18 GHz)

Frequency Range: 10 MHz ~ 18 GHz

Power Range: -60dBm to +20dBm

Zeroing Accuracy: ≤ 1nW

Input Port VSWR:

10MHz – 50MHz: 1.21

50MHz – 2GHz: 1.15

2GHz – 12.4MHz: 1.20

12.4GHz – 18MHz: 1.27

Input Connector: Type-N (m)

Calibration Factor Uncertainly: ±0.25dB

Linearity Power:

+10dBm ~ +20dBm: ±0.18dB

-40dBm ~ +10dBm: ±0.14dB

-50dBm ~ -40dBm: ±0.39dB

-60dBm ~ -50dBm: ±0.79dB

Max. Input Power: +23dBm

Power Supply: Mini USB port

Power Consumption: ≤ 1.8W

Dimension: 46.2(W) × 35.6(H) × 142.6(D) mm

Weight: 235g
