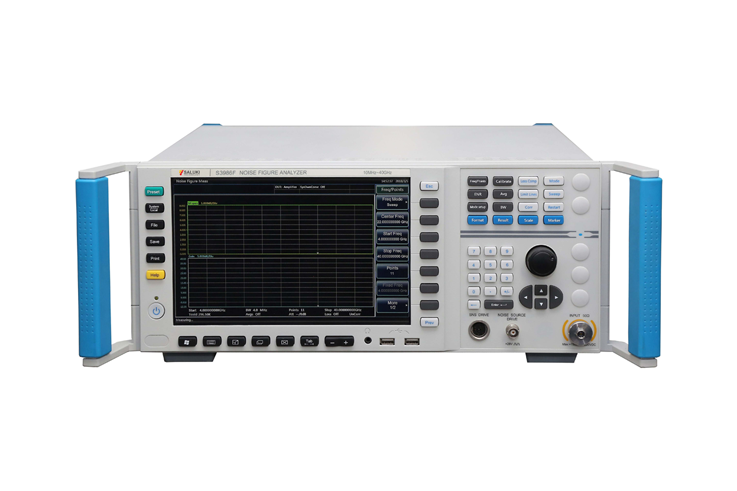

SALUKI S3986E Noise Figure Analyzer (10 MHz ~ 26.5 GHz)

Frequency Range: 10 MHz to 26.5 GHz

Frequency Reference Accuracy: <±0.2ppm (23°C±3°C)

Frequency Tuning Accuracy

10MHz – 4GHz: < ±(Reference frequency error +100kHz)

4GHz – 18/26.5/40/50GHz: < ±(Reference frequency error +400kHz)

Noise Figure Measurement Range: 0 – 30dB (ENR: 12dB – 17dB)

Gain Measurement Range: -20dB to +40dB

Input VSWR

10MHz ≤ f ≤ 4GHz: < 1.90:1

4GHz < f ≤ 18GHz: < 2.10:1

18GHz < f ≤ 50GHz: < 2.40:1

Main Unit’s Self Noise Figure

10MHz ≤ f ≤ 4GHz: < 8.0dB

4GHz < f ≤ 18GHz: < 7.5dB

18GHz < f ≤ 26.5GHz: < 8.0dB

26.5GHz < f ≤ 40GHz: < 10.0dB

40GHz < f ≤ 50GHz: < 12.0dB

Altitude Range: 4,600 meters

RF Input Connector: 3.5mm (male), 50Ω impedance

Noise Source Drive Output

Standard noise source: BNC (female)

Smart noise source: multi-core connector

Power Supply: AC 100V – 240V, 50/60Hz

Power Consumption:

Max. power consumption: 250W

Max. standby: 20W

Monitor: 10.1 inch 1280×800 HD screen, XGA

Data Storage: 160 G solid state disk, support USB 2.0 standard storage units

Dimension:

426(W) × 177(H) × 460(D)mm (excluding handle, bottom, pad and side strap)

510(W) × 190(H) × 534(D) mm (including handle, bottom, pad and side strap)

Weight: < 25kg
