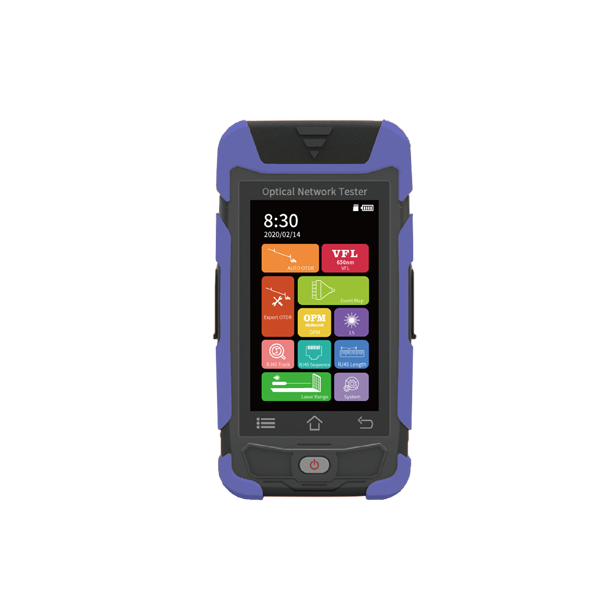

SALUKI S2105-P2F1 Optical Time Domain Reflectometer (1650 nm, 26 dB, SM)

1. OTDR

Wavelength: 1650 nm

Dynamic Range: 26 dB

Event Blind Zone: 1.2m

Attenuation Blind Zone: 5m

Display Resolution: 0.01dB

Test Range: 0.5km/1km/2km/4km/8km/16km/32km/64km/100km

Pulse Width: 3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1µs/2µs/3µs/5µs/8µs/10µs/20µs

Sampling Point: 16k – 256k

Sampling Resolution: 0.05m – 8m

Loss Accuracy: ≤0.05dB/dB

Loss Resolution: 0.001dB

Reflection Accuracy:± 3dB

IOR: 1.0 – 2.0

Loss Analysis: 4-point method / 5-point method

File Format: SOR (standard format)

Optical Interface:FC/UPC (Interchangeable SC, ST)

Laser Safety Level: Class II

Refresh Rate: 3Hz (typ.)

Multitasking Function: Support

2. OPM

Wavelength Range: 800nm – 1700nm

Measurement Range: -50dBm to +26dBm or -70dBm to +10dBm

Uncertainty: ± 5%

Resolution : ≤0.01dB

Connector: Universal joint FC/SC/ST

Calibration Wavelength: 850/980/1300/1310/1490/1550/1625/1650 nm

3. LS

Wavelength: Consistent with OTDR output wavelength

Output Power: ≥ -5dBm

Stability: CW, ±0.5dB/15min

Laser Source: FP-LD

Connector: FC/UPC (Interchangeable SC, ST)

Output Mode: CW/270Hz/330Hz/1kHz/2kHz

4. VFL

Wavelength: 650nm ± 20nm

Output Power: ≥ 10mW (standard)

Mode: CW/1Hz/2Hz

Connector: FC/UPC (Interchangeable SC, ST)

Laser Safety Level: Class III

5. Laser Ranging

Test Range: 0.05m – 40m

Test Accuracy: ± 2.0mm

Laser Type: 620nm – 690nm

Laser Safety Level: Class II, <1mW

6. RJ45 Cable Tracker

Mode: Digital/Analog tracking

Test Distance: ≥ 300m

7. Optical Loss Test

Wavelength: Consistent with LS output wavelength

Test Range: Consistent with OPM

Insertion Loss Test: Support

8. RJ45 Cable Length

Test Distance: ≥ 300m

Display: 4.3 inch 800x480 IPS TFT-LCD, Multi touch capacitive touch screen

Data Storage: Internal: 8GB (≥200,000 data)

Data Interface: USB Type C

Battery: 3.7V / 4000mAh Lithium battery, continuous working time > 8 hours

Power Supply: AC/DC adapter: Input 100V-240V, 50/60Hz, 0.6A, Output 5V, 2A

Dimension: 92 (W) × 174 (H) × 45 (D) mm

Weight: About 0.4kg (including battery)
