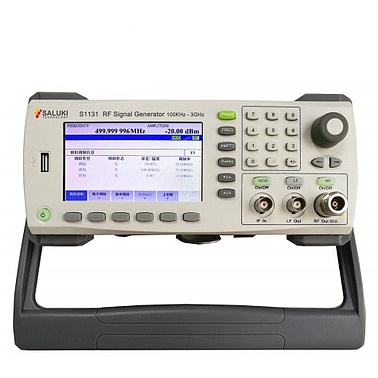

Saluki S1131 RF Signal Generator (100kHz~3Ghz)

Frequency Range 100kHz - 3GHz

Frequency Resolution 1Hz

Aging Rate (Typ.) 1ppm/year

Sweep Modes Step Sweep / List Sweep

Sweep Type Single / Continue

Sweep Point Step Sweep: 2 - 65535, List Sweep: 2 - 1023

Trigger Mode Free, External

Amplitude

Output Power Range -120dBm - 10dBm

Output Power Resolution 0.01dB

Power Accuracy +10dBm to -80dBm: <±0.5dB

-80dBm to -120dBm: <±1dB

VSWR <1.8

RF Output Interface N type 50ohm

LF Output BNC 50ohm

External Ref Input BNC 50ohm

External Pulse Input BNC 50ohm

External Trigger Input BNC 50ohm

10MHz Ref Input BNC 50ohm

USB USB 2.0

LAN 10/100 Base T

Dimension (mm) 340× 230×110

Weight Approx. 5Kg

Operating Temp. 0~ +45℃

Power Supply 110 - 240V 50/60Hz
