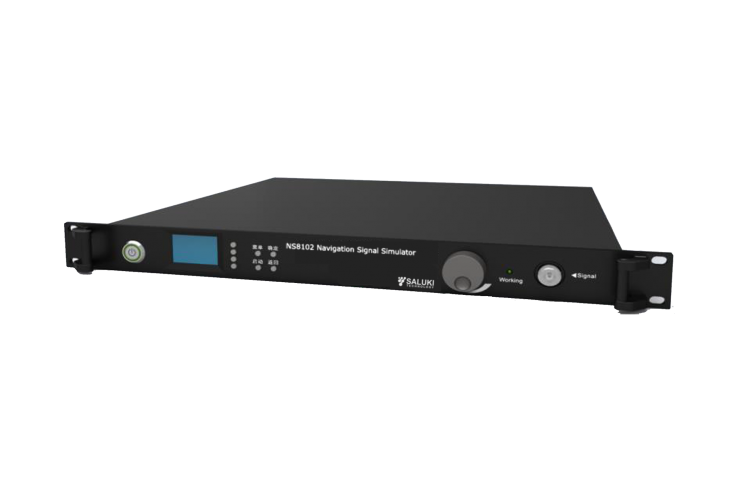

SALUKI NS8102 Navigation Signal Simulator

Output Frequency

BeiDou: B1:1561.098MHz, B2:1207.14MHz, B3:1268.52MHz

GPS: L1:1575.42MHz, L2:1227.60MHz, L5:1176.45MHz

GLONASS: L1:1602.00MHz, L2:1246.00MHz

Galileo: E1:1575.42MHz, E5a:1176.45MHz, E5b:1207.14MHz

RDSS: L: 1618.25MHz, S: 2491.75MHz

Modulation System: Mode: BPSK

Signal Scale: Channel number: Up to 8 channels per frequency

Signal Quality:

Spurious (max.): -40dBc

Harmonics (max.): -35dBc

Phase Noise

-75dBc/Hz @100Hz

-80dBc/Hz @1kHz

-85dBc/Hz @10kHz

-90dBc/Hz @100kHz

Signal Power Control:

Resolution: superior to 1dB

Absolute accuracy: superior to 1dB

Power Range: -150dBm to -60dBm

External Interface: RF output: one Type-N port (optional for two ports)

Power Supply: AC power: 220V±20V, 200W

Dimension: 518.4(W) × 44(H) × 482.6(D) mm
