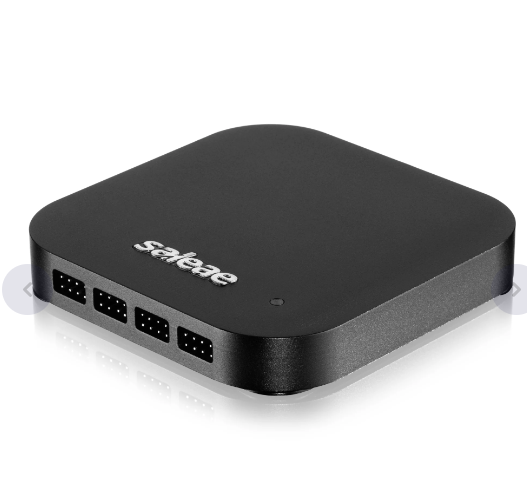

Saleae Logic Pro 16 Analyzers Logic (2 MΩ, 10 pF)

Inputs

Multi-Use (A/D/Both): 16

Input Resistance: 2 MΩ

Input Capacitance: 10 pF

Input Protection: ± 25V

Digital

Sample Rate (max): 500 MS/s

Fastest Digital Signal: 100 MHz

Sample Depth (typical): 10+ Billion

Supported Logic Levels: 1.2V - 5.5V

Works with RS-232, 422/3, 485: Yes, directly

Threshold Voltages: Selectable.6V / .9V / 1.65V

Analog

Sample Rate (max): 50 MS/s

Bandwidth (-3dB): 5 MHz

Number of bits: 12 bits

Input Voltage Range: -10 V to 10 V

Attenuation @ Nyquist: -50 dB or better

Channel-Channel Crosstalk: -50 dB or better

Included

Test Lead Set: x4

Test Clips 8-Pack: x4

USB Cable and Carry Case: Yes

Physical

Size: 3.6" x 3.6" x .59" ( 92 x 92 x 15 mm )

Weight: 7.8 oz ( 220 g )

USB

USB Type: USB 3.0
