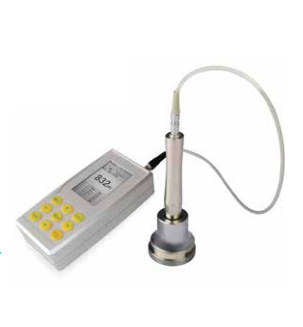

SADT SUH-100 Ultrasonic Hardness Tester (HRC20-70±1.5)

Principle: Ultrasonic hardness measurement

Loading Force: 2Kgf Manual Probe HP-2K

Indenter: 136°Vickers Diamond Indenter

Hardness Scale: HV / HB / HRC / HLD

Measuring range: HB 85-650; HV 80-1599; HRC 20-70; HRB 41-100; HRA 61-85.6 HS: 34.2-97.3; Mpa: 255-2180N/mm

Accuracy: HV ±3%HV; HRC ±1.5HRC; HB ±3%HB; HLD ±5HLD;

Measuring Direction: Support 360°

Data Storage: To save 1000-groups of measuring data and 20-groups of calibration data

Data Display: Loading force, Testing-times, Testing result, Average, Maximum, Minimum, Deviation and

Conversion scale

Hardness Indication: LCD display

Operating Environment Temperature: -10°C~50°C; Humidity: 30%~80%R.H

Operating Voltage: DC 6V

Power on/off: Auto

Dimension: 160mm x 80mm x 31mm

Net weight: Approximate 500g (Without probe)
