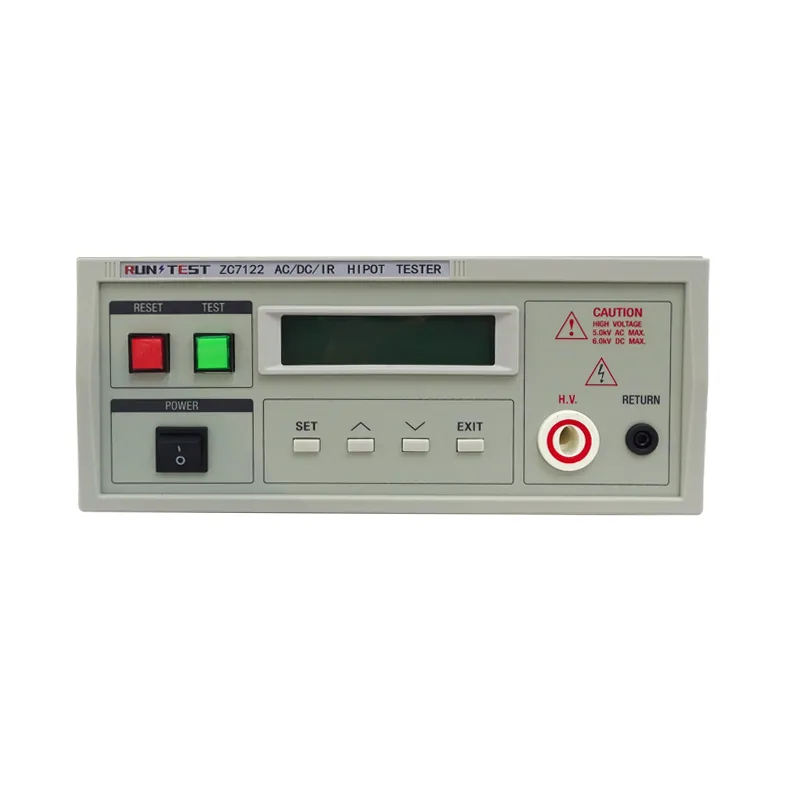

Run Test RUN-ZC7122 Hipot Tester Insulation Resistance Tester (5KV AC 6KV DC)

AC Withstand Voltage Test

Output voltage: Range: 0–5000V, 0–12mA, resolution 10V

Accuracy: ±(2% set value + 5V)

Output frequency: 50Hz/60Hz selectable

Output waveform: Sine wave, distortion degree <2%

Upper limit setting: Range: 0.10–12.00mA, resolution 0.01mA, Accuracy: ±(2% set value + 2 words)

Lower limit setting: Range: 0.00–12.00mA, resolution 0.01mA, Accuracy: ±(2% set value + 2 words)

Arc detection: Level 1–9

DC Withstand Voltage Test

Output voltage: Range: 0–6000V, resolution: 10V, accuracy: ±(2% set value + 5V)

Output ripple: <5% (6kV/5mA) tested under linear load

Upper limit setting: Range: 0.02–5.00mA, resolution: 0.01mA, Accuracy: ±(2% set value + 2 words)

Lower limit setting: Range: 0.00–5.00mA, resolution: 0.01mA, Accuracy: ±(2% set value + 2 words)

Automatic discharge: 200ms

Control Interface

Input: test (TEST), reset (RESET)

Output: test passed (PASS), test failed (FAIL)

Testing in progress: TEST-IN-PROCESS

Slow Rise Setting: Range: 0.1–999.9 seconds

Testing Time: Range: 0.5–999.9 seconds (0 = continuous test)

Test Result Output Method: Buzzer, LCD display reading, control interface status output

Memory Group: 5 groups of test conditions are memorized, each group has 3 test steps to choose

Monitor: 16×2 LCD display with backlight

Insulation Resistance Test

Output voltage: Range: DC100–1000V, resolution 10V, accuracy: ±(2% set value + 5V)

Resistance range: Range: DC100–1000V, resolution 10V,

Accuracy: ±(3% set value + 2 words) for voltage ≥500V,

±(7% set value + 2 words) for voltage <500V

Upper limit setting: Same resistance range, spacing 1MΩ

Lower limit setting: Same resistance range, spacing 1MΩ

Features about this AC DC Withstanding Voltage Hipot Tester

1. 16×2 large character LCD display

2. Linear, low distortion sine wave output

3. 5 groups of program setting and memory function

4. Voltage ramp setting function

5. Unique arc detection function, defect identification is more accurate

6. AC and DC withstand voltage/insulation test function
