Run Test RUN-R5000 Handheld 3 Phase Electric Power Quality Analyser

Influence factor: Environment temperature

Test item: All parameters

Base condition: (23±2)°C

Working condition: -10°C~40°C

Influence factor: Relative humidity

Test item: All parameters

Base condition: 40%~60%

Working condition: <80%

Influence factor: Phase-to-neutral voltage

Test item: All parameters

Base condition: (100±1%)V

Working condition: 1.0V~1000V

Influence factor: Phase-to-phase voltage

Test item: True RMS phase-to-phase voltage

Base condition: (200±1%)V

Working condition: 1.0V~2000V

Influence factor: Current

Test item: True RMS current

Base condition: (5±1%)A

Working condition: 10mA~1000A

Influence factor: Network frequency

Test item: All parameters

Base condition: 50Hz±0.1Hz

Working condition: 40Hz~70Hz

Influence factor: Phase shift

Test item: Active power and active energy

Base condition: Cosφ=1

Working condition: Cosφ: 0.2~1.0

Influence factor: Phase shift

Test item: Reactive power and reactive energy

Base condition: Sinφ=1

Working condition: Sinφ: 0.2~1.0

Influence factor: Harmonic

Test item: All parameters

Base condition: <0.1%

Working condition: 0.06%~100%

Influence factor: Voltage unbalance

Test item: All parameters

Base condition: <10%

Working condition: <10%

Influence factor: Working voltage of device

Test item: All parameters

Base condition: DC9.8V±0.1V

Working condition: DC9.5V~10.5V

Influence factor: External electric field, magnetic field

Test item: All parameters

Base condition: —

Working condition: Should be avoided

Influence factor: Test position

Test item: Measured related parameters of current

Base condition: —

Working condition: Tested wire at the center of clamp

Battery indicator: Battery symbol shows dump energy. When the voltage is too low, automatic shutdown after the 1 minute.

Power consumption: Current consumption of normal test 490mA, continuous working for 8 hours.

Display mode: LCD color screen, 640dots×480dots, 5.6 inches, display domain: 116mm×88mm.

Size of clamp: 008B small sharp current clamp: 7.5mm×13mm; 040B circle current clamp: 35mm×40mm; 068B circle current clamp: 68mm×68mm.

Instrument dimensions: L×W×H: 240mm×170mm×68mm.

Number of channels: 4U/4I.

Phase-to-phase voltage: 1.0V~2000V.

Phase-to-neutral voltage: 1.0V~1000V.

Current: 008B current clamp: 10mA~10.0A; 040B current clamp: 0.10A~100A; 068B current clamp: 1.0A~1000A; Optional current transformer: instrument input current 1mA~500mA.

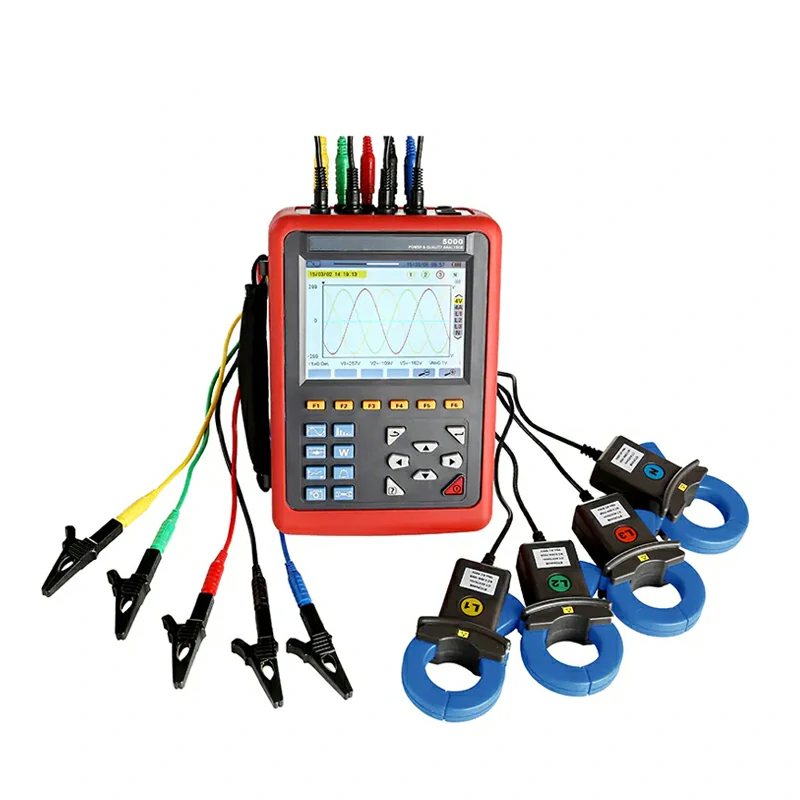

Portable handheld Class S Power Quality Analyzer Three Phase Power Quality Tester Measuring Instrument Harmonic Analyzer

Power Quality Analyser also named: Intelligent Three Phase Power Quality Analyser, Multifunctional Power Quality Analyser, which simultaneous with the functions of harmonic analyser, phase volt-ampere meter, electric parameter tester. It apply to electricity industry, petrochemical, metallurgy, railway, mining enterprises, scientific research institution, metrological department. Especially suitable for comprehensive analysis and diagnosis on all the voltage, current, power, power, harmonic, phase electric parameters.

Functions and Features for the Handheld Power Quality Harmonics Analyzer:

★ Waveform real-time display (4 channels voltage/4 channels current).

★ True RMS values of voltages and currents.

★ The DC components of voltages.

★ Peak current and voltage values.

★ Minimum and maximum half-cycle RMS current and voltage values.

★ Phasor diagram display.

★ Measurement of each harmonic up to order 50.

★ Bar charts show harmonic ratios of current and voltage of each phase.

★ Total harmonic distortion (THD).

★ Active, reactive, apparent power, by phase and cumulative.

★ Active, reactive, apparent energy, by phase and cumulative.

★ Transformer K factor.

★ Power factors (PF) and displacement factors (DPF or COSΦ).

★ Short-term voltage flicker (PST).

★ Three phase unbalance(current and voltage).
