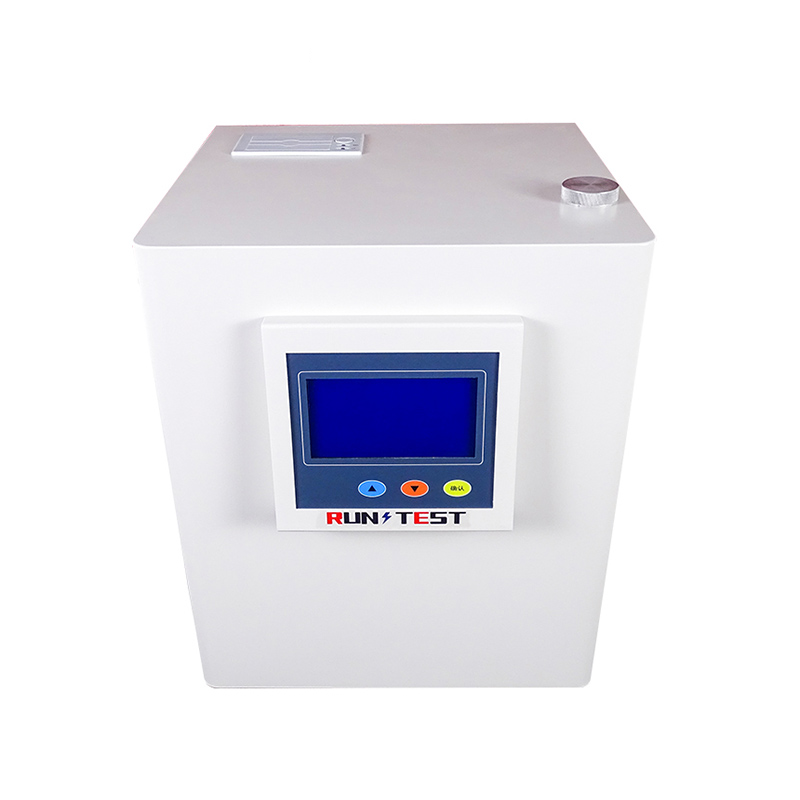

Run Test Run-PP01 Transformer Oil Pour Point Tester and Cloud Point Testing Device

Temperature Measurement: Platinum resistance

Accuracy: ±1℃

Resolution: 0.1℃

Measurement Range: +10℃ to -70℃

Display: Blue LCD

Data Storage: 100 sets

Oil Sample: 20ml each time

Cooling Water:

 • Pressure: 4.9×10¹⁴～4.9×10⁵ Pa

 • Flow: 1.5L/min

Power Voltage: 220V ±22V

Frequency: 50Hz ±2.5Hz

AC Power: ≤250VA

Operating Temperature: 10～35℃

Relative Humidity: ≤85%RH

Weight: 25kg

Transformer Oil Pour Point Tester and Cloud Point Testing Device

The Oil pour point Tester has self-diagnosis function, and the analysis sample is fast, accurate, reproducible, stable and reliable. It is a special instrument of Transformer Oil Test, and is designed for replacing imported products in the power, petroleum and chemical industries.

When testing the freezing point of petroleum products, the CPU controls the cooling system to cool the sample, and the LCD displays the status, temperature, set value and clock. When the sample is cooled to the maximum temperature (freezing point), the display displays the freezing point temperature, sound prompt and print the test results. When testing the pour point of petroleum products, when the sample cools to the lowest temperature that can flow (pour point), the display shows the pour point temperature, sound prompt and print the test results. The instrument is a special instrument for replacing imported products in the electric power, petroleum and chemical industries.

Features about the Oil Pour Point Lab Equipment

This Oil pour point Tester is:

1.High-performance microprocessor and the latest semiconductor refrigeration technology.

2.Self-diagnosis function, sample analysis is fast, accurate, repeatable, stable and reliable.

3.Adopt high-performance microprocessor and the latest semiconductor refrigeration technology.

4. Blue liquid crystal display (240 × 128) realizes Chinese character display and man-machine dialogue.

5.The instrument has self diagnosis function.

6.The analysis sample is fast, accurate, reproducible, stable and reliable.
