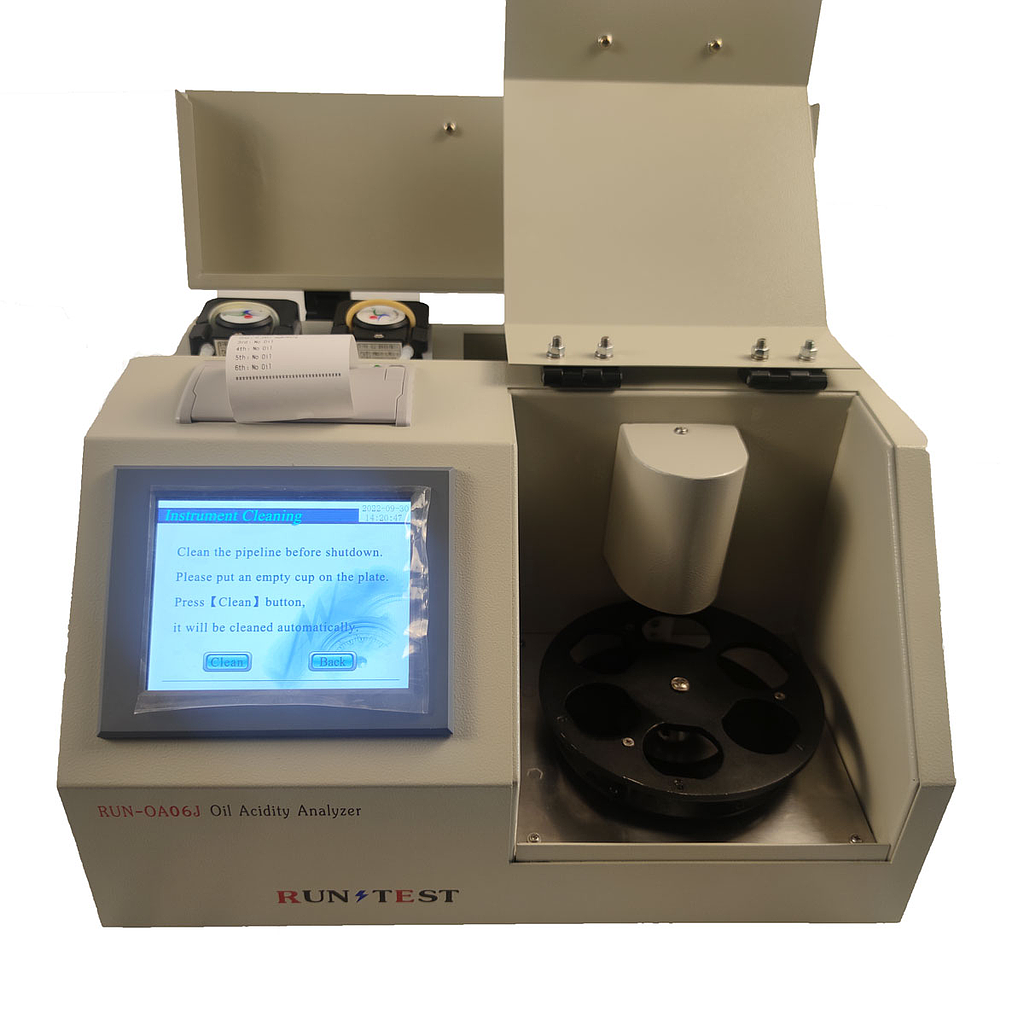

Run Test RUN-OA06J Auto Extraction Method Transformer Oil Acid Value Tester (0.002～1mg KOH/g)

Acid Value Measurement Range: 0.002～1mg KOH/g

Indication Repeatability: 0.002mg KOH/g

Best Resolution: 0.001mg KOH/g

Accuracy: Acid Value 0.001~0.100mg KOH/g, accuracy ±0.003mg KOH/g

Accuracy: Acid Value 0.100~0.400mg KOH/g, accuracy 5% of indication value

Power Voltage: AC220V ±10%, 50Hz ±5Hz

Power: 50W

Operating Temperature: 10～40℃

Relative Humidity: ≤85%RH

Weight: 12.5kg

Fully Automatic Transformer Oil Acid Tester

Steps for Testing: Just put the samples into the sample cup, put the sample cup into the sample cup hole, the instrument will automatically search samples, extract injection and blank titration, determination, discharge waste liquor, automatic cleaning shutdown, the print results and so on. The equipment startup can be measured in 1-3 samples, which is convenient operation and high efficiency.

Features of the Oil Acid Value Tester:

1.  Six-cup integrated design.

2.  Automatically complete operations such as extraction agent addition, neutralization titration and end point discrimination, acid value calculation, data storage and print output.

3.  Automatic compound extraction liquid and neutralization liquid.

4.  Average testing period is 2 minutes.

5.  6-inch LCD touch screen.

6.  Power-off storage function, data storage up to 100 sets.

7.  Standard acid automatic calibration function, which eliminates system errors to the maximum extent, and ensures the accuracy of measurement results Built-in micro printer, both online and offline print function available.

8.  Large-capacity and high-efficiency carbon dioxide and water purification system to ensure the stability of the concentration of the neutralization solution Technical Parameter.

9.  Simple design, small size, easy operation.

10.  USB port to connection with PC.
