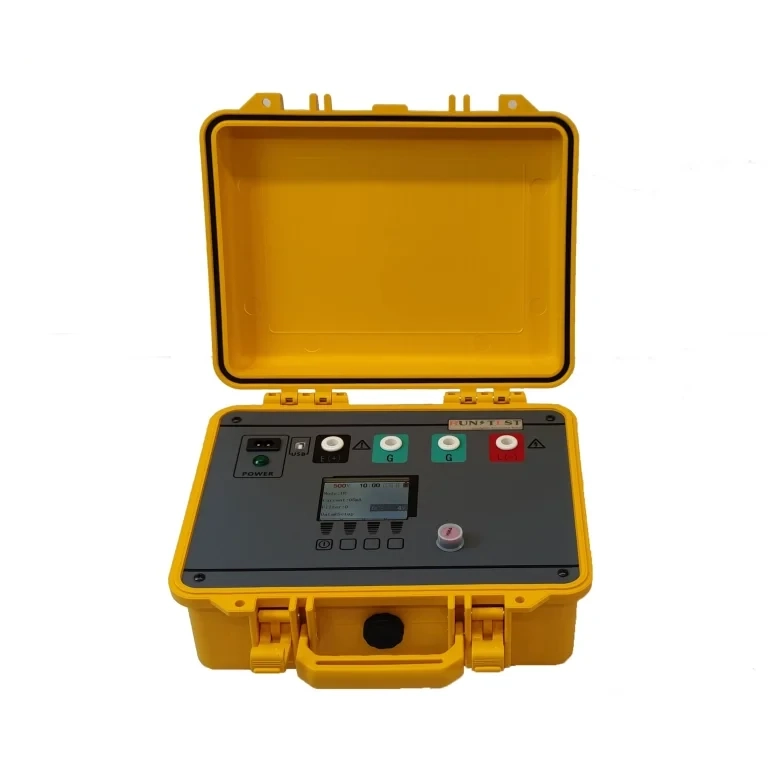

Run Test RUN-IR1026 High Voltage Digital Insulation Resistance Tester (10kv)

Technical Parameters of the Insulation Tester

AC Power: 220V±10%, 50/60 Hz, 20 VA

Battery: 16.8V Lithium ion rechargeable battery

Battery Life: 5000V@100M, 6 hours

Dimension (L × W × H): 27cm × 23cm × 16cm

Test voltage accuracy: the nominal value 100% to 110%

Output Voltage measurement accuracy: ±5%±10V

Voltage measurement range: AC: 30–600V (50Hz/60Hz), DC: 30–600V

Voltage measurement accuracy: ±2%±3dgt

Current test range: 10mA

Current measure precision: 5%±0.2nA

Short-circuit current: 2–5mA, output adjustable

Capacitance test range: 25uF

Capacitance test accuracy: ±10%±0.03uF

Capacitor discharge rate: from 5000V to 10V, 1S/µF

Protection: 2% error, shielding 500kΩ leakage resistance under 100mΩ load

Analog display range: 100kΩ to 10TΩ

Digital display range: 100kΩ to 10TΩ

Alarm: 0.01MΩ to 9999.99MΩ

Insulation Resistance Testing Range and Accuracy (T:23±5°C, RH:45–75%)

Range Accuracy 500V 1000V 2500V 5000V 10000V

Unspecified <100k <100k <100k <100k <100k

±5%±3dgt 100k–100G 100k–200G 100k–500G 100k–1T 100k–2T

±20% 100G–1T 200G–2T 500G–5T 1T–10T 2T–20T

Manual mode: Range: 1G/V, 100G at 100V. When the voltage is less than 200V, the resistance error increases by 10%.

1. Insulation resistance range 20TΩ@10Kv

2. The short-circuit current can be adjusted up to 5mA.

3. Automatically display the test values of polarization index (PI) and absorption ratio (DAR), and can test leakage current and capacitance, DD and SV.

4. Excellent anti-interference performance, when the interference current reaches 2mA, the instrument still guarantees the test accuracy.

5. The AC and DC voltage test function of the tested circuit can automatically identify AC or DC.

6. The capacitive test product is discharged quickly. When the cable is tested, manual discharge is not required, and the instrument automatically discharges quickly.

7. 2 power modes: use lithium battery for power supply, battery life can reach 6 hours.

8. At the same time, it can be charged in use. In the event of a power failure, it can automatically switch from AC power supply to battery power supply.

9. English Menu, easy operation,

10. Display insulation resistance simulation column.

11. Digital filter function, use the filter function to reduce the influence when the display value is deviated due to

12. external influence

13. Perfect protection function, the G/E circuit has a built-in fuse and has a blowout prompt, and the screen has a red background and white text prompt information when it is blown

14. Data storage function(USB Data export and Micro-printer optional)
