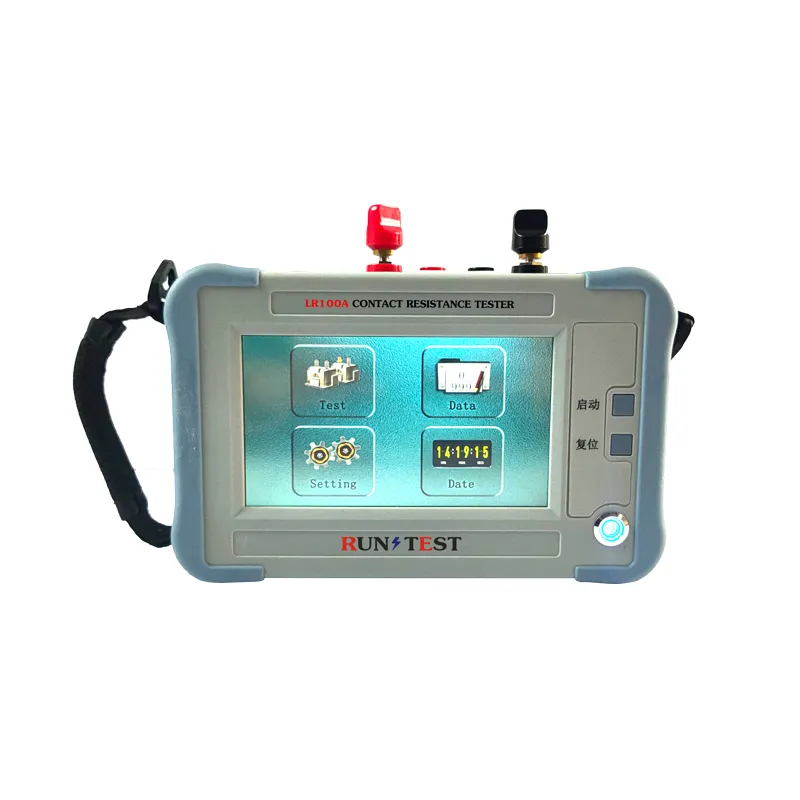

Run Test RUN-HLR100A Handheld type 100A contact resistance tester

Test Current: 50A, 100A

Range: 0～5mΩ（50A）  0～2mΩ（100A）

Best Resolution: 0.1µΩ

Accuracy: ±（0.5%±2 digits）

Test method: Constant test

Operating temperature: 0～40℃

Relative Humidity: 0-90%, non-condensing

Dimensions: 425*335*210mm

Weight: Instrument 2 KG

Item

Instrument: 1

Red Test Line: 1

Black Test Line: 1

Factory Inspection Report: 1

Charger: 1

Features of the 100A loop resistance tester:

1. Multiple Protection function

2. Intelligent Power management technology, energy saving and heat reduction.

3. Higher Voltage outputs, wider measurement range.

4. Quick and automatic measurement due to high precision large constant current power supply.

5. To eliminate the influence of the test wire resistance on the test results by four-terminals wiring method.

6. 7-inch high brightness color LCD touchscreen, clear display even under strong light.

7. Internal data storage up to 1000 sets.

8. USB, Bluetooth used for computer connection or data storage.
