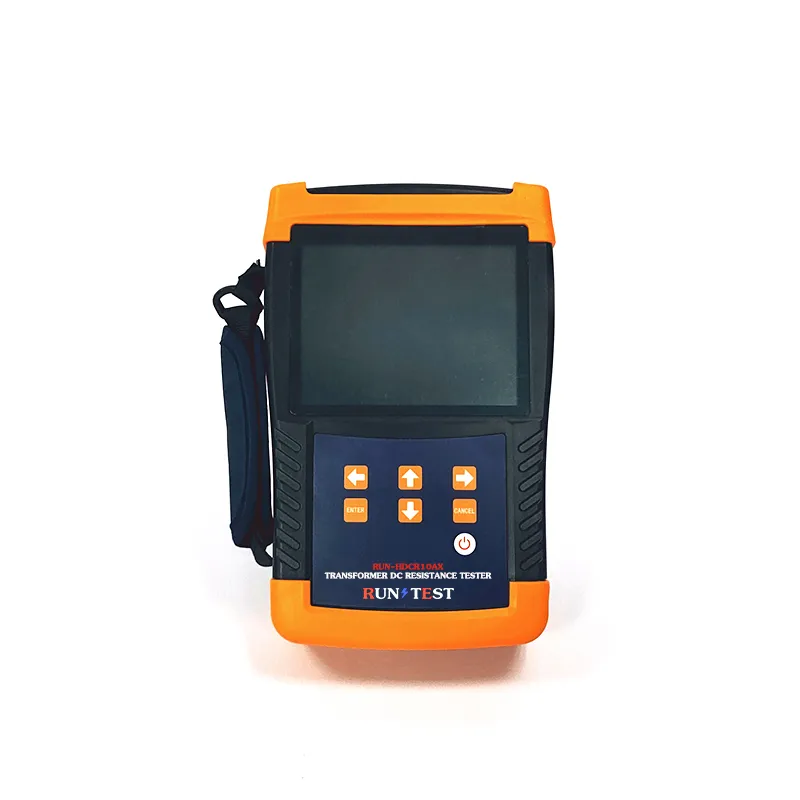

Run Test RUN-HDCR10AX Transformer Winding Resistance Meter DC Resistance Tester

Measuring Range

Output Current: 100A, 80A, 50A, 30A

Measuring Range:

– 100A: 0~2000μΩ

– 80A: 0~5mΩ

– 50A: 0~10mΩ

– 30A: 0~20mΩ

Technical Index

Accuracy: ±(Reading×0.5%+1μΩ)

Resolution Ratio: 0.1μΩ

Display Digit: Four and a half digits

Test Power Supply: Constant current limit voltage, about 2V

Input Voltage: Maximum 5V

Measuring Time: Quick, 10–60 seconds optional

Testing Times: More than 600 times (full charge, fast measurement mode)

Test Line: Resistance less than 10mΩ

Conditions of Use and Shape

Working Power Supply: Built-in lithium battery or external charger, charger input 100–240VAC, 50Hz/60Hz

Charging Voltage: 12.6V

Charging Current: ≤3A

Charging Time: About 3 hours

Auto Shut Off: 5 minutes automatic shutdown without operation

Instrument Weight: 1.7kg (exclude test lines)

Instrument Dimension: 246mm (L) × 156mm (W) × 62mm (H)

Environment Temperature: -10℃~+50℃

Relative Humidity: ≤90%, no dew

DC Resistance Test

Current Gear / Measuring Range:

10A → 500μΩ~200mΩ

5A → 10mΩ~1Ω

1A → 100mΩ~20Ω

100mA → 1Ω~200Ω

10mA → 50Ω~2kΩ

1mA → 500Ω~50kΩ

Introduction for this Portable DC Winding Resistance Tester

Portable DC Winding Resistance Tester is an innovative product with compact size, hand-held operation, more portable and easy to carry.

The product is not only suitable for the measurement of transformer, transformer, reactor and other inductive test products, but also suitable for the measurement of copper bars, conductors, switch contacts and other resistive test products. The instrument has fast testing speed and high accuracy.

Standard accessories of this handheld transformer DC resistance meter：

√1 Hand-held transformer winding resistance tester

√1 sets of test lines (red and black each)

√1 charger（16.8V）

√1 wrist band (attached to a hand-held tester)）

√1 print user manual

√1 copy of certificate and factory test report

Optional：

√1 external printer (with printing cable attached）

√1 wireless temperature measurement module (with 2 rubber rod antennas)

√1 charger（4.2V）

Features of Transformer DC Winding Resistance Tester for Transformer

1.  Adaptive lithium batteries or 220 v ac supply. After a single charge, the dc resistance of hundreds of transformers can be tested continuously. The test process is simple and convenient

2.  The output current is six grades, the maximum output current is 10A, the maximum output voltage is 25V, and the current can be automatically selected, which is convenient and fast.

3.  Wide range and high accuracy，500uΩ～50KΩ.

4.  It has the function of resistance temperature conversion, and can be equipped with wireless temperature measurement module, which can measure the field test temperature in real time to ensure the accuracy of resistance commutation value.

5.  It has many kinds of protection functions, such as back EMF protection, broken line protection, power-off protection and over heating alarm.

6.  6-inch super industrial high-brightness color LCD screen, still visible under strong sunlight.

7.  Equipped with external printer, facilitate data printing

8.  It can be stored locally and on USB memory.
