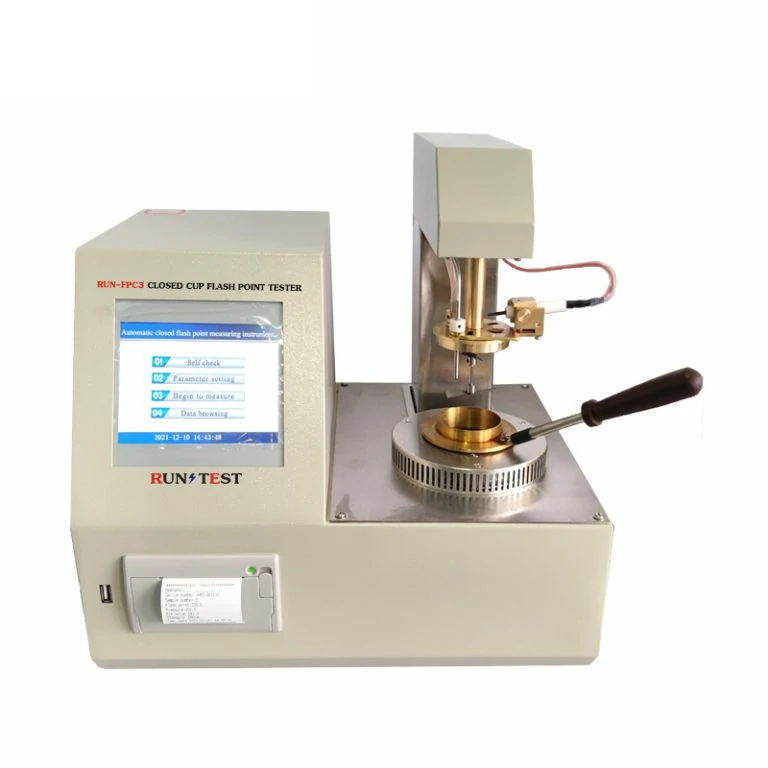

Run Test RUN-FPC3 Pensky-Martens Closed Cup Flash Point Tester

Temperature Measuring Range: -49.9℃～400.0℃

Repeatability: 0.029×X (X = the average of two consecutive test results)

Resolution: 0.1℃

Accuracy: 0.5%

Temperature Measuring Element: Platinum resistance (PT100)

Flash Fire Detection: K-type thermocouple

Ambient Temperature: 10～40℃

Relative Humidity: <85%

Power Supply Voltage: AC220V ±10%

Power: 50W

Heating Speed: Complies with US and China standards

Dimensions: 390×300×302mm

Weight: 15kg

The instrument is designed and manufactured according to the requirements in the national standard GB/T 261 “Determination of Flash Point – Pensky – Martens Closed Cup Method”, and applies to the measurement of the petroleum products with the flash point range of 25℃～370℃ according to the methods stipulated in the standard.

Function and features of this Transformer Oil Flash Point Test Kit

1.  New high speed digital signal processor ensure reliable and accurate test

2.  Fully automatic function for detection, cover opening, ignition, alarm, cooling and printing.

3.  Platinum heating wire method

4.  Automatic detection of atmospheric pressure and automatic correction of test results

5.  Adopt newly developed high-power high-frequency switching power supply heating technology, high heating efficiency, adopt adaptive PID control algorithm, automatically adjust the heating curve

6.  Automatically stop the detection and alarm when over-temperature

7.  Built-in printer

8.  Data storage up to 50 sets with time stamp

9.  640X480 color touch screen, English interface

10. Built-in test standard as per requirement
