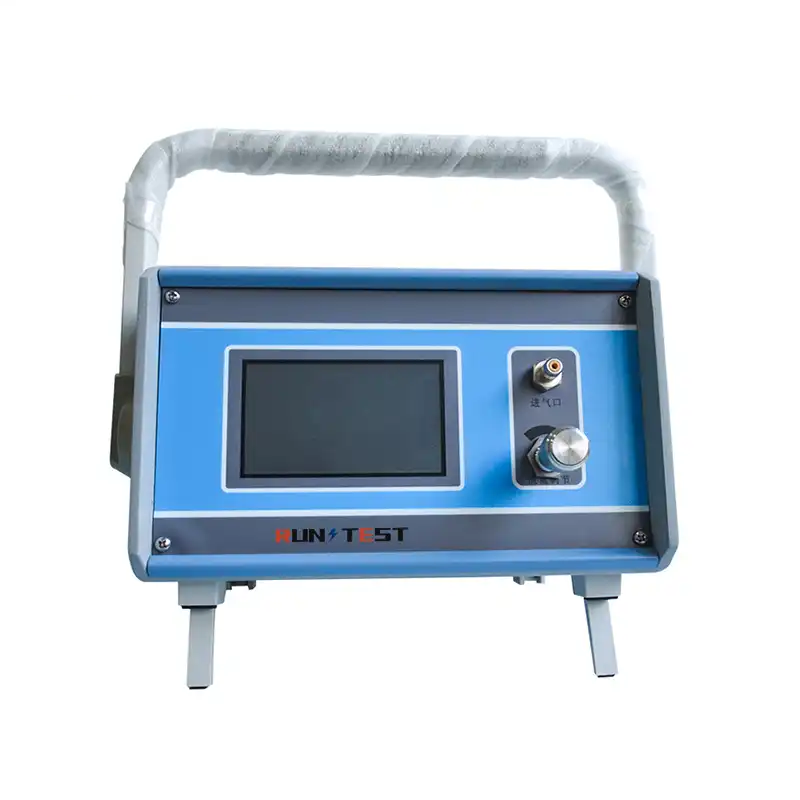

Run Test RUN-DP01 Online Moisture Dew Point Tester (-80℃ — +20℃; 0.05—23100 μL/L)

Dew Point Range: -80℃ — +20℃

Measuring Accuracy: ±0.5℃

Moisture Range: 0.05— 23100 μL/L

Measuring time: 3 — 5 Minutes

Resolution: Dew Point：0.1℃;  Moisture：0.1ppm（100ppm～1000ppm）0.01ppm(10ppm～100ppm)

Repeatability: ±0.2℃

Probe protection: Stainless steel sintered filter

Communication method: USB，Equipped with host computer data management software

Pressure Measurement: 0—1.0 Mpa

Flow Measurement: 0—1 L/min

Temperature: -30— 100 ℃

Humidity: 0— 100 %

Operating Temperature: -10—50℃

Relative Humidity: 0—90%RH

Recommended Measuring Flow: 0.5—0.6L/min

Power Supply: Lithium battery power supply, dual-purpose AC and DC, automatic switching, overcharge and over discharge protection function

Dimension: 330×220×150（mm）

Weight: 3.8kg

Features of the sf6 gas purity analyzer

SF6 Analyzer is

1.Zero point automatic calibration

2.Mass storage function

3.Battery level reminder

4.Touch buttons make operation simple and convenient

5.Good repeatability and fast response

6.5.7 inch large screen TFT color LCD display

7.Real-time printing of measurement data

8.Anti-pollution, anti-interference

9.High sensitivity and good stability

10.Intuitive curve display

11.Moisture value is automatically converted into 20℃ standard moisture value

This instrument is a portable precision dew point meter, so pay special attention to the following points

1.It is forbidden to switch the power of the instrument in dangerous areas!

2.It is forbidden to charge in dangerous areas!

3.During the measurement process, the flow regulating needle valve should be opened slowly to prevent sudden changes in pressure, so as to avoid damage to the pressure sensor and flow sensor; the flow of the measuring gas SF6 should be adjusted to 0.5 ~ 0.6L/min.

4.The instrument must be fully charged for storage, and if it is not used for a long time, it is necessary to check whether the battery is sufficient.
