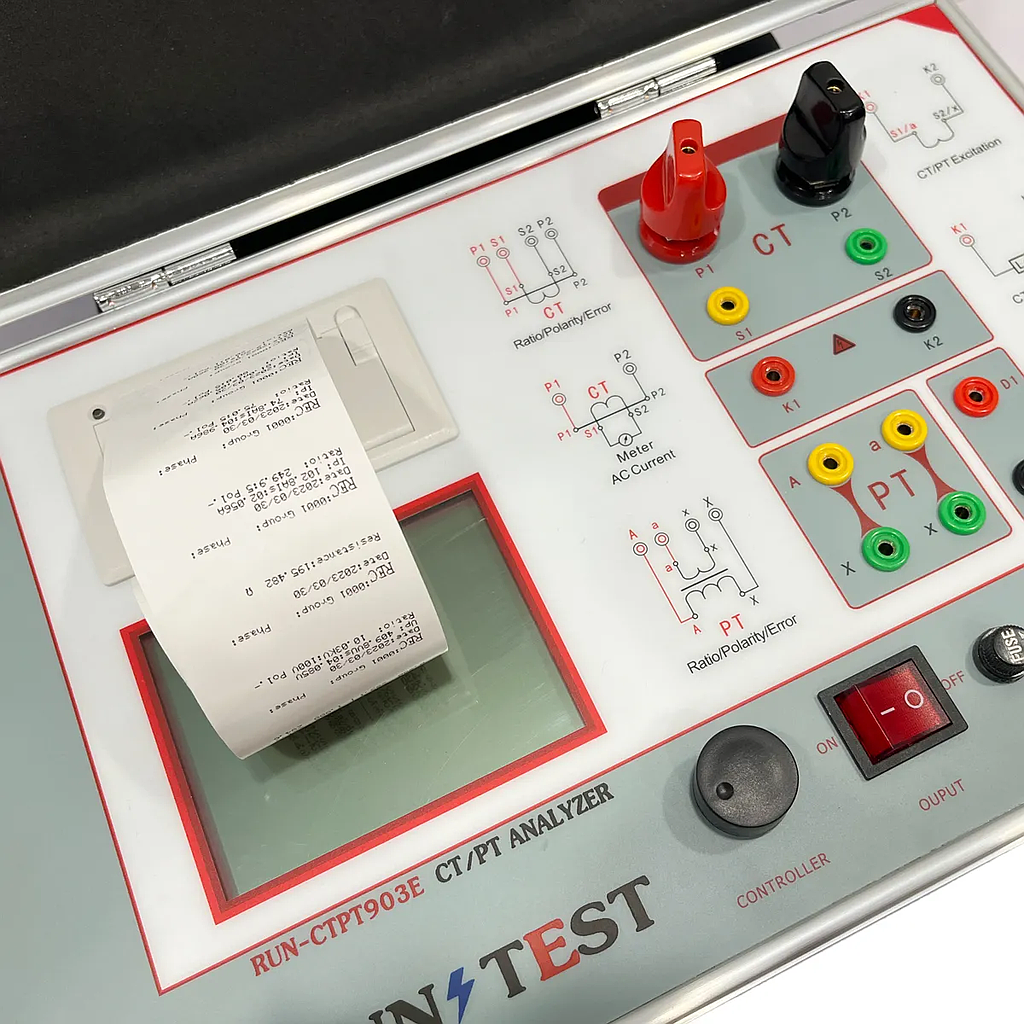

Run Test RUN-CTPT903E CT PT Analysis CT Ratio Tester PT Polarity Tester

Technical Datesheet Of The Current Transformer Testing Equipment/ CT PT Analyzer

Power Supply: AC220V±20V, 50–60Hz

Equipment Power Supply Output Waveform: Sine Wave

Single Machine Output Voltage of Excitation Characteristic: 0–1000V

Excitation Output Current: 0–20A

Single Machine Output Current of Transformation Ratio Test: 0–600A

CT Ratio Measurement Range: 5–25000A/5A (5000A/1A)

PT Ratio Measurement Range: 1–500kV

Load Range: 5–1000VA

Resistance Measurement Range: 0.1–300Ω

Error: ≤0.5% (0.2%*Reading + 0.3%*Range)

Operating Temperature: −10℃~+40℃

Relative Humidity: <90%RH

Altitude: ≤1000m

Overall Dimension (Length×Width×Height): 400×200×260mm

Weight: ≤23kg

Technical features about the Transformer CT PT Analyzer

1. Support testing CT and PT

2. Meet the requirements of GB 20840.3-2013, GB 20840.2-2014 and other regulations

3. No need to connect other auxiliary equipment, all testing items can be completed in a single machine

4. Comes with a micro-fast printer, can directly print test results on site

5. Using intelligent controller, simple operation

6. Large screen LCD, graphical display interface

7. CT / PT (excitation) inflection point value is automatically given according to the regulations

8. Automatically give 5% and 10% error curves

9. 3000 sets of test data can be saved without loss after power off

10. Support U disk transfer data, can be read through a standard PC, and generate WORD report

11. Small and light ≤22kg, very conducive to on-site testing
