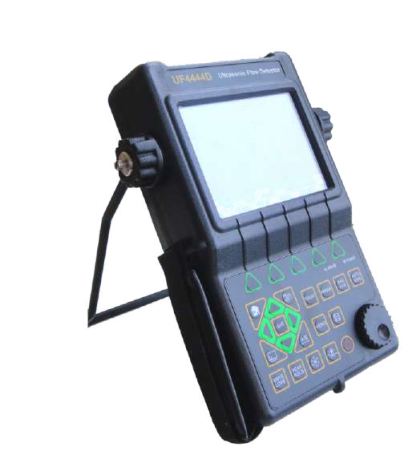

RTUL UFD 4444D Portable Ultrasonic Flaw Detectors (10 mm – 9999 mm, 0.5 – 15 MHz)

Overall Dimensions: 263 x 170 x 61 mm

Weight: 1.9 Kg

Battery Type & Life: Lithium ion batteries, 8 hours

Display Type: TFT

Voltage Supply: 7.2V DC

Test Modes: Pulse Echo/Through Transmission

Operating Mode: Single/ Double Probe, T/R mode

Range: 10 mm - 9999 mm

Velocity: 300-15000 m/s

Bandwidth: 0.5-15 MHz

Sensitivity: 140 ± 3dB

Gain Control: 103 dB in min 1 dB steps

Horizontal Linearity: ≤0.2%

Vertical Linearity: ≤3%

Ambient Temperature: (-20~50)°C

Spike Excitation: 200 V, 300 V, 400 V, 500 V, 600 V

Pulse Repetition Rate: 10 to 1000 Hz

Pulse Width: Adjustable

Damping: 68, 130, 500

Real-Time Sampling: 160 Mhz

Rectification: Full wave, half wave, RF

DB Step: 0.1 dB, 1 dB, 2 dB, 6 dB

Memory: 100 channel files/ 1000 A-Scan wave files
