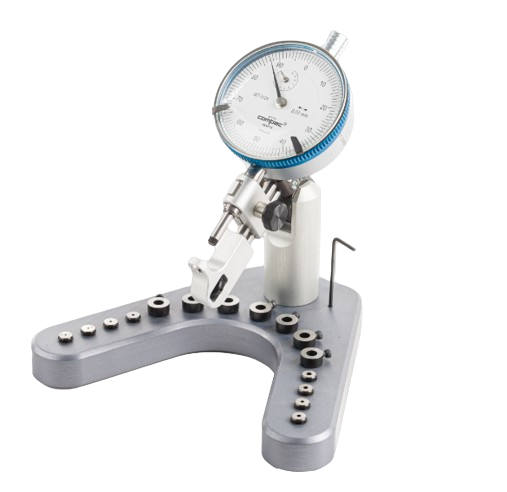

Roxer ACCLT MOBIL Winding Stem Length Testing and Correction Device (6 to 32 mm)

Ø Winding stem : Up to 2.2 mm

Winding stem square : 0.36 to 0.84 mm

Winding stem length : 6 to 32 mm

Dial indicator resolution : 0.01 mm

Weight : 0.84 kg

Dimensions (l/d/h) : 150 x 125 x 160 mm

Delivered with guide sockets Ø : 0.8 / 0.9 / 1.1 / 1.3 / 1.5 / 1.7 / 1.9 / 2.2 mm

Delivered with drive sockets Ø : 0.39 / 0.44 / 0.51 / 0.6 / 0.71 / 0.84 / 1.5 mm

 Datasheet
