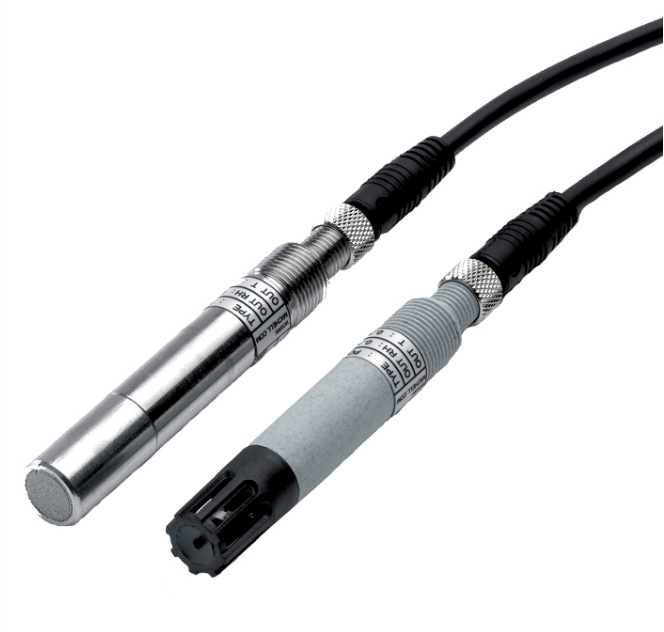

Rotronic PCMini52 Humidity and temperature probe (-20…80 °C / 0…100 %rh)

Probe type: Digital relative humidity and temperature

Measuring range: -20…80 °C / 0…100 %rh

Accuracy at 23 °C: ±2 %rh (10…90 %rh) / ±0.2 K

Long-term stability <1 %rh / year

Probe housing: Molded polymer or stainless steel

IP Protection rating: IP65

Power supply: 14…35 VDC (0…5 V/0…10 V output) 6…35 VDC (0…1 V output)

Output signal: Modbus RTU 0 to 1.0 to 5.0 to 10 V

Response time rh sensor <10 sec typical (for 90% of the step change)

Electrical connections: 4 pin, M8 connector 4 pin, M12 connector

Weight: 10 g (0.35 oz)
